DOUBLE JOINTED MALE LIFTING EYE

    DSS M 24 UP
    €310.42 Tax excluded
    DIAMETRE EN MM
    CMU EN KG
    Quantity

    REQUEST A QUOTE
    close

    Request for quotation

    En cochant cette case, vous reconnaissez avoir lu, compris et accepté, notre politique de confidentialité*


    Paiement 100% sécurisé
    visa visa visa visa

    Product description

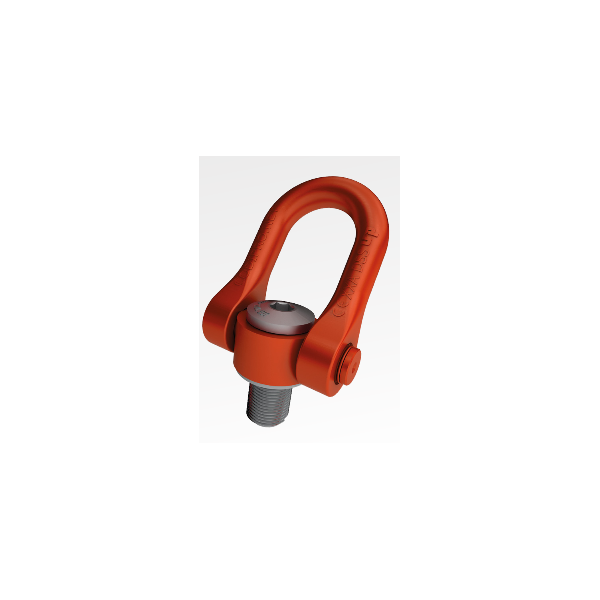

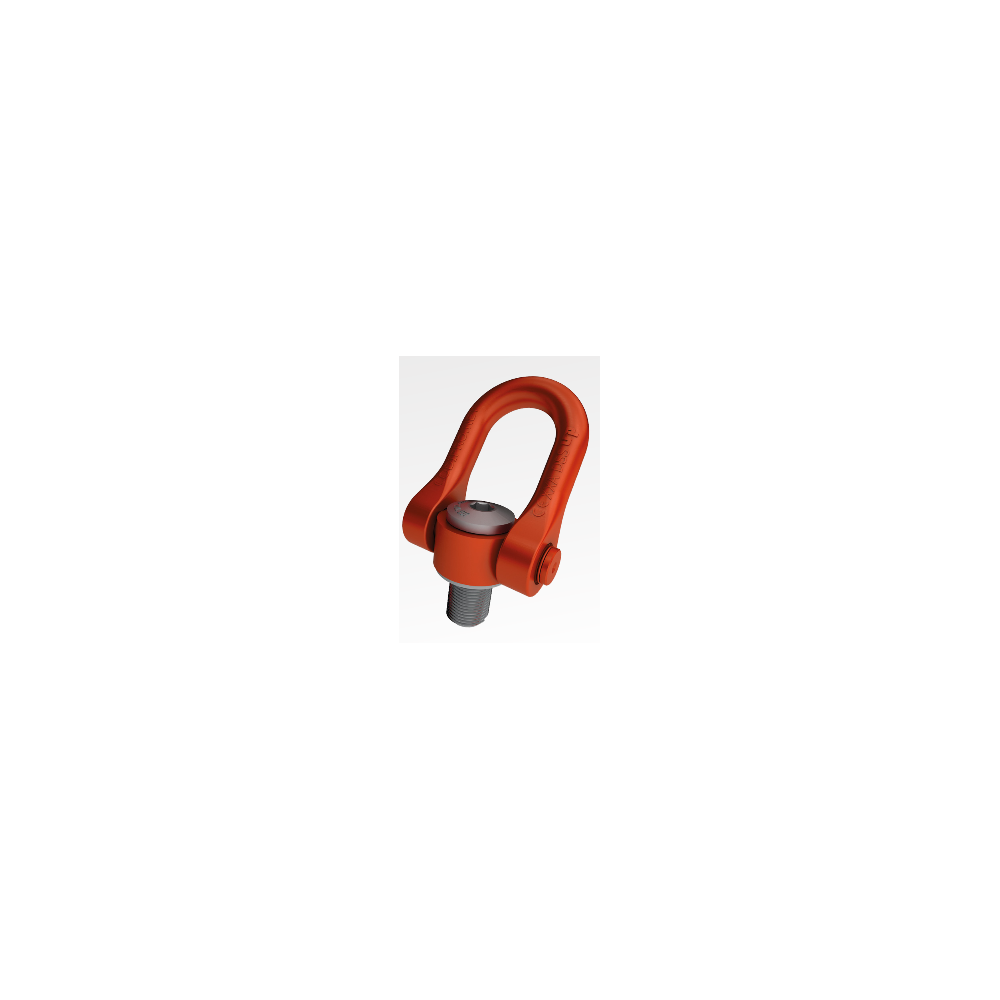

    The DSS universal lifting eye is a double-jointed eye. The lifting ring is designed to perform lifting operations with rotation of loads. Its double articulation ensures a perfect alignment with the sling.

    The DSS lifting ring is made of a GRADUP steel ring that can turn over under load. The DSS ring can be used directly on an existing fixing point (axle or overhanging threaded rod)

    The lifting ring has a safety coefficient of 4 and is available in male and female versions (FE.DSS).

    Smooth hole or other threaded versions on request.

    Product details

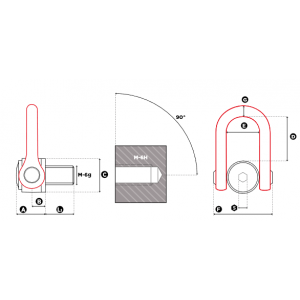

    RéférenceCMUCoefficient de sécuritéDiamètreL1 standardCouple de serrageSABCDEFGPoids
     [t]/[LBS]  [mm][N.m]/[FootLBS][mm][mm][mm][mm][mm][mm][mm][mm][kg]
    DSS M 24 UP4.5 t5M24
    (x3)
    36160 N.m1961317010473149295.4
    DSS M 30 UP7.3 t5M30
    (x3.5)
    45250 N.m1961317010473149295.5
    DSS M 33 UP8 t5M33
    (x3.5)
    50250 N.m1961317010473149295.5
    DSS M 36 UP10 t5M36
    (x4)
    54320 N.m1961317010473149295.5
    DSS M 36x3 UP10 t5M36
    (x3)
    54320 N.m1961317010473149295.5
    DSS M 39 UP10 t5M39
    (x4)
    58320 N.m1961317010473149295.7
    DSS M 42 UP12.5 t5M42
    (x4.5)
    63400 N.m1961317010473149295.8
    DSS M 42x3 UP12.5 t5M42
    (x3)
    63400 N.m1961317010473149295.8
    DSS M 45 UP15 t4M45
    (x4.5)
    63400 N.m1961317010473149295.9
    DSS M 48 UP20 t4M48
    (x5)
    68600 N.m19793890125911823611
    DSS M 48x3 UP20 t4M48
    (x3)
    68600 N.m19793890125911823611
    DSS M 48x4 UP20 t4M48
    (x4)
    68600 N.m19793890125911823611
    DSS M 52 UP20 t4M52
    (x5)
    68600 N.m19793890125911823611.2
    DSS M 56 UP25 t4M56
    (x5.5)
    78600 N.m19793890125911823611.3
    DSS M 56x4 UP25 t4M56
    (x4)
    78600 N.m19793890125911823611.4
    DSS M 64 UP32.1 t4M64
    (x6)
    90600 N.m19793895125911823612.2
    DSS M 64x4 UP32.1 t4M64
    (x4)
    90600 N.m19793895125911823612.2
    DSS M 72 UP25 t4M72
    (x6)
    90600 N.m19793895125911823614
    DSS M 72x4 UP25 t4M72
    (x4)
    90600 N.m19793895125911823614
    DSS M 80 UP32.1 t4M80
    (x6)
    90600 N.m19793895125911823615
    DSS M 90 UP32.1 t4M90
    (x6)
    90600 N.m19793895125911823615.5
    DSS M 100 UP32.1 t4M100
    (x6)
    90600 N.m19793895125911823616.5
    DSS U 100 UP10000 LBS5UNC 1" – 836160 F.L1961317010473145295.4
    DSS U 125 UP14000 LBS5UNC 1"1/4 – 745200 F.L3/4"61317010473145295.4
    DSS U 138 UP20000 LBS5UNC 1"3/8 – 654300 F.L3/4"61317010473145295.4
    DSS U 150 UP20000 LBS5UNC 1"1/2 – 654300 F.L3/4"61317010473145295.4
    DSS U 200 UP50000 LBS4UNC 2"– 4 ½76450 F.L3/4"793890125911843311.1
    DSS U 250 UP55000 LBS4UNC 2"1/2 – 490600 F.L19793895125911843612.2
