OMEGA GRADE 80 COUPLER

    CO7/8R
    €11.46 Tax excluded
    DIAMETRE EN MM
    CMU EN KG
    Quantity

    REQUEST A QUOTE
    close

    Request for quotation


    Paiement 100% sécurisé
    visa visa visa visa

    Product description

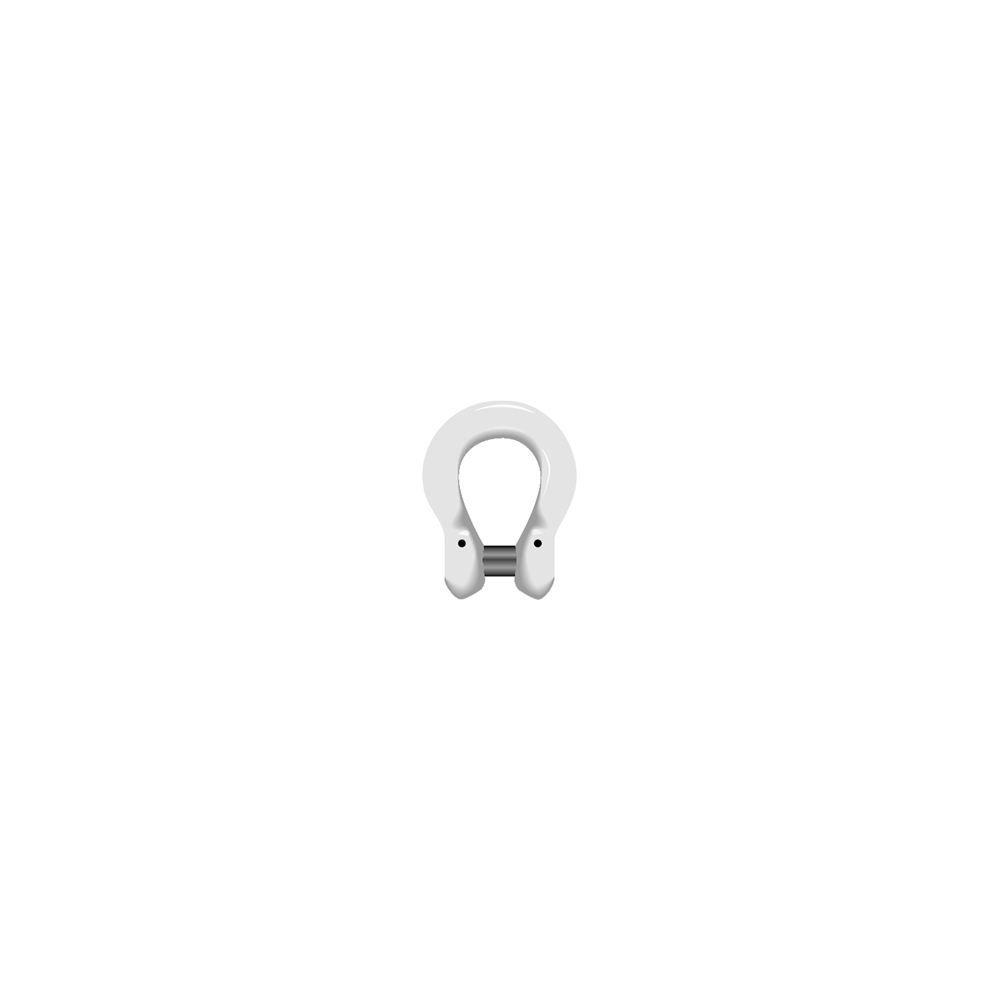

    • The omega coupler grade 80 allows a direct connection between the chain of a sling and the accessories. The steel Omega Coupler is an alternative to the connecting link.

      The coupler is made of alloy steel, grade 80, hardened and tempered. The coupler is available in white, but is also available in red (R) or yellow (J) on request. The maximum breaking load of the coupler is 4 times the CMU.

      The link complies with the EN 1677-1 standard.

    Product details

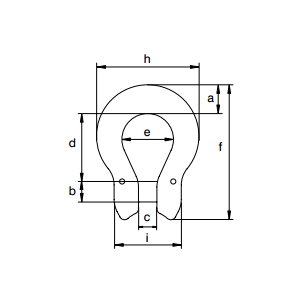

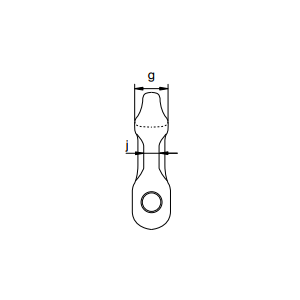

    RéférenceC.M.U.Pour chaînes ØLargeurØ axeLargeurLongueur intérieureLargeur de l’arcLongueurEpaisseurLargeur extérieureLargeur extérieureEpaisseurPoids
     [t][mm]a [mm]b [mm]c [mm]d [mm]e [mm]f [mm]g [mm]h [mm]i [mm]j [mm][kg]
    CO50.85146726205313412860.07
    CO61.126148725205313412860.07
    CO7/827 – 8209934247116553280.2
    CO103.210191312403182176342110.28
    CO135.4132516155140106208454140.64
    CO168.21632201964481322510468171.28
    CO18/2012.818 – 2038242380591633012682222.25
