Product description

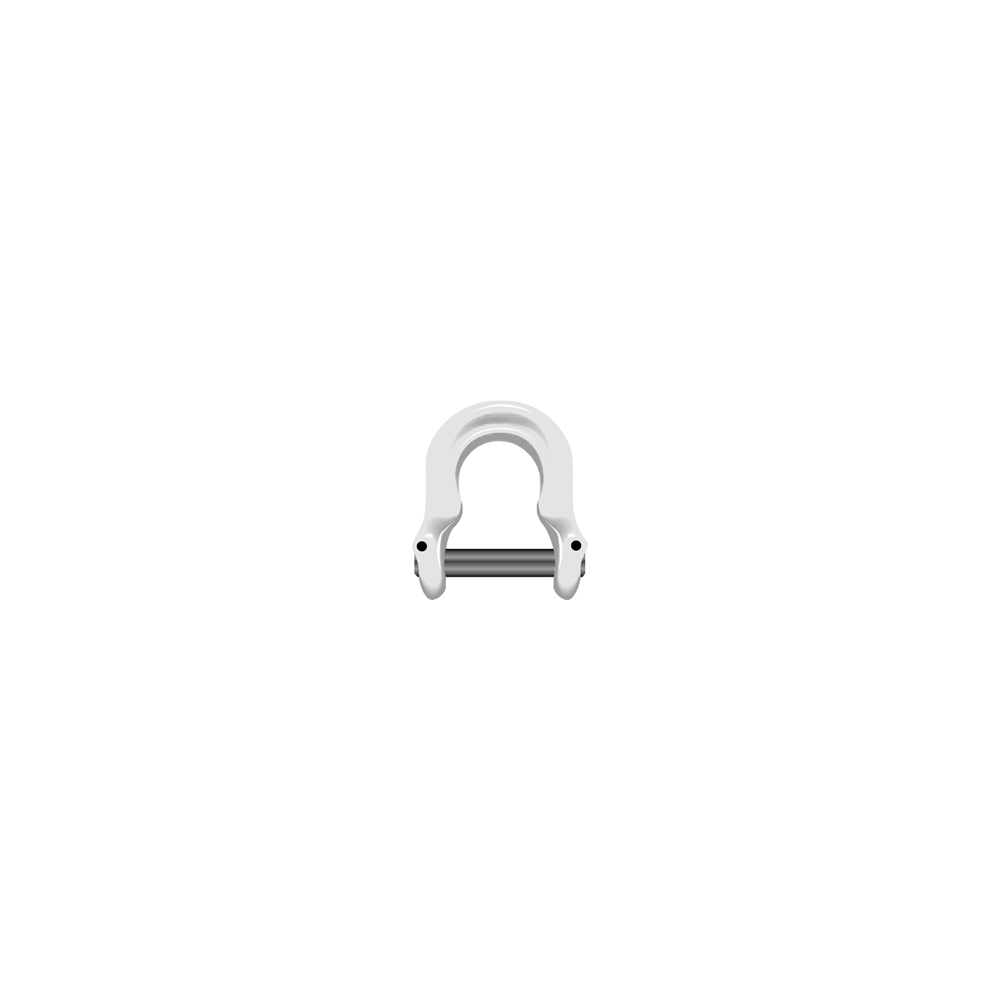

The COS Grade 80 Strap Coupler is manufactured from alloy steel, hardened and tempered with a yellow or white paint finish. The safety factor of the coupler is 4 times the CMU.
Combinations are possible with the G80 single head link, G80 clevis locking hook, and G80 clevis single hook.
The strap coupler is available for diameters from 9 to 20mm.
Product details

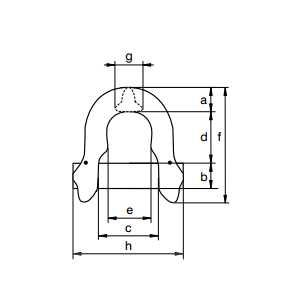

| Référence | CMU | a | b | c | d | e | f | g | h | Poids unitaire |
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| COS60 | 2 | 14 | 9 | 33 | 35 | 23 | 66 | 15 | 59 | 0.18 |
| COS90 | 3.2 | 18 | 13 | 44 | 45 | 30 | 86 | 20 | 75 | 0.37 |
| COS150 | 5.4 | 22 | 16 | 57 | 59 | 38 | 107 | 25 | 94 | 0.72 |
| COS240 | 8.2 | 28 | 20 | 70 | 72 | 48 | 133 | 31 | 117 | 1.35 |
Advices
The COS Grade 80 Strap Coupler is manufactured from alloy steel, hardened and tempered with a yellow or white paint finish. The safety factor of the coupler is 4 times the CMU.
Combinations are possible with the G80 single head link, G80 clevis locking hook, and G80 clevis single hook.
The strap coupler is available for diameters from 9 to 20mm.
