Product description

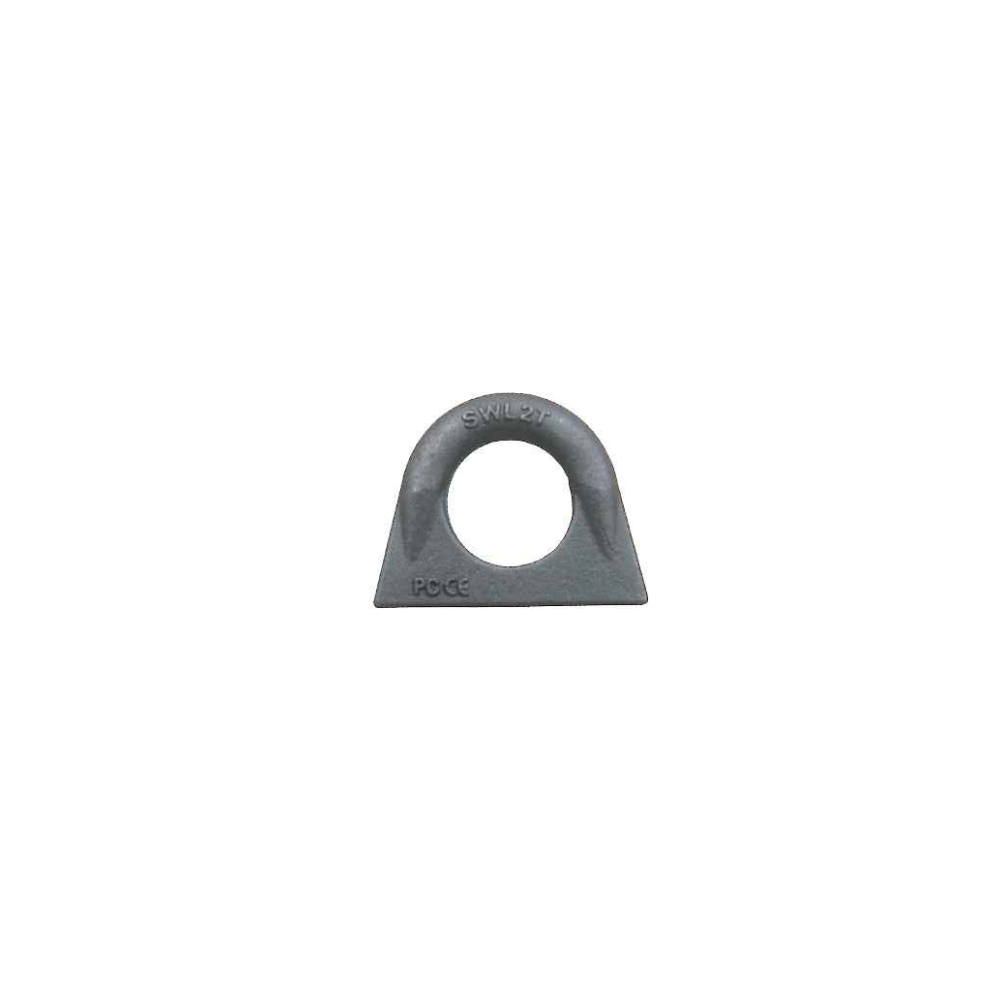

The ASH straight weld-on lifting ring is made of steel with a black rough finish.
The weld ring is available in several variations with a WLL from 200 to 8000kg and a diameter of only 24mm.
The safety coefficient of the ring is 5.
For more information, please contact our customer service.
Product details

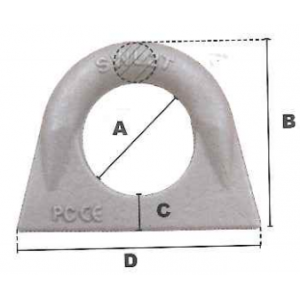

| Référence | CMU | Ø | A | B | C | D | Poids |
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| ASH200 | 0.2 | 9 | 24 | 43 | 10 | 54 | 0.06 |
| ASH500 | 0.5 | 12 | 31 | 55 | 12 | 68 | 0.145 |
| ASH1000 | 1 | 13 | 43 | 67 | 12 | 85 | 0.22 |
| ASH2000 | 2 | 18 | 48 | 82 | 16 | 105 | 0.425 |
| ASH3000 | 3 | 21 | 57 | 95 | 17 | 128 | 0.72 |
| ASH4000 | 4 | 25 | 67 | 107 | 15 | 148 | 1.135 |
| ASH6000 | 6 | 28 | 82 | 135 | 24 | 189 | 1.935 |
| ASH8000 | 8 | 30 | 100 | 165 | 35 | 210 | 3.23 |
The ASH straight weld-on lifting ring is made of steel with a black rough finish.
The weld ring is available in several variations with a WLL from 200 to 8000kg and a diameter of only 24mm.
The safety coefficient of the ring is 5.
For more information, please contact our customer service.
