LIFTING CABLE COMPLAST 9
CHP16CP9 9x17AM
Product description
Complast 9 is a versatile, high performance rope for use in demanding lifting applications such as tower and mobile lifts, gantry steering and travel ropes, and high performance bridges such as opposite direction rope pair lifting systems.

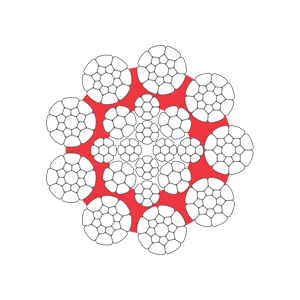

The plasticizing process joins the core and the outer strands, ensuring that all the components of the rope behave in the same way. It has a good rotational behavior. It is fatigue and corrosion resistant, pressure and abrasion resistant and has a large metallic cross-section. Its breaking load and service life are very high. Although not non-rotating, its optimal geometric assembly gives it notable anti-rotating characteristics.
The cable is available from 16 to 34mm, for larger diameters please request a quote. The price is for 1M of cable. For more lengths, please contact our customer service.
Product details
| Ø câble | Section | Poids | Charge de rupture minimale |
| mm | mm | kg/m | kN |
| 1960 MPa | |||
| 16 | 135.4 | 1.20 | 219 |
| 18 | 171.7 | 1.54 | 277 |
| 19 | 191.4 | 1.72 | 308 |
| 20 | 213.5 | 1.92 | 346 |
| 22 | 255.2 | 2.31 | 416 |
| 24 | 303.1 | 2.74 | 493 |
| 25 | 334.1 | 3.02 | 545 |
| 25.4 | 350.3 | 3.17 | 569 |
| 26 | 362.7 | 3.28 | 592 |
| 28 | 415.6 | 3.75 | 677 |
| 28.6 | 430.3 | 3.89 | 700 |
| 30 | 469.9 | 4.25 | 763 |
| 32 | 534.6 | 4.84 | 868 |
| 34 | 617.5 | 5.56 | 1015 |
| 35 | 652.9 | 5.88 | 1104 |
| 36 | 689.2 | 6.21 | 1168 |
| 38 | 763.9 | 6.90 | 1290 |
| 40 | 857.6 | 7.76 | 1401 |
| 41 | 918.4 | 8.24 | 1482 |
| 42 | 953.8 | 8.73 | 1563 |
| 44 | 1051.3 | 9.51 | 1716 |
| 46 | 1142 | 10.31 | 1870 |
| 48 | 1235.3 | 11.18 | 2030 |
| 50 | 1343.2 | 12.17 | 2198 |
| 52 | 1443.4 | 12.99 | 2343 |
| 54 | 1556.6 | 14.01 | 2527 |
| 56 | 1674.0 | 15.07 | 2716 |
| 58 | 1784.2 | 16.03 | 2934 |
| 60 | 1914.6 | 17.24 | 3160 |
| 62 | 2080.0 | 18.75 | 3402 |
| 64 | 2186.4 | 19.98 | 3625 |
Complast 9 is a versatile, high performance rope for use in demanding lifting applications such as tower and mobile lifts, gantry steering and travel ropes, and high performance bridges such as opposite direction rope pair lifting systems.
The plasticizing process joins the core and the outer strands, ensuring that all the components of the rope behave in the same way. It has a good rotational behavior. It is fatigue and corrosion resistant, pressure and abrasion resistant and has a large metallic cross-section. Its breaking load and service life are very high. Although not non-rotating, its optimal geometric assembly gives it notable anti-rotating characteristics.
The cable is available from 16 to 34mm, for larger diameters please request a quote. The price is for 1M of cable. For more lengths, please contact our customer service.
