TENDEUR HAUTE RESISTANCE CHAPE/CHAPE

    SSGPGG1906
    €54.42 Tax excluded
    DIAMETRE EN MM
    CMU EN KG
    COURSE
    Quantity

    REQUEST A QUOTE
    close

    Request for quotation


    Paiement 100% sécurisé
    visa visa visa visa

    Product description

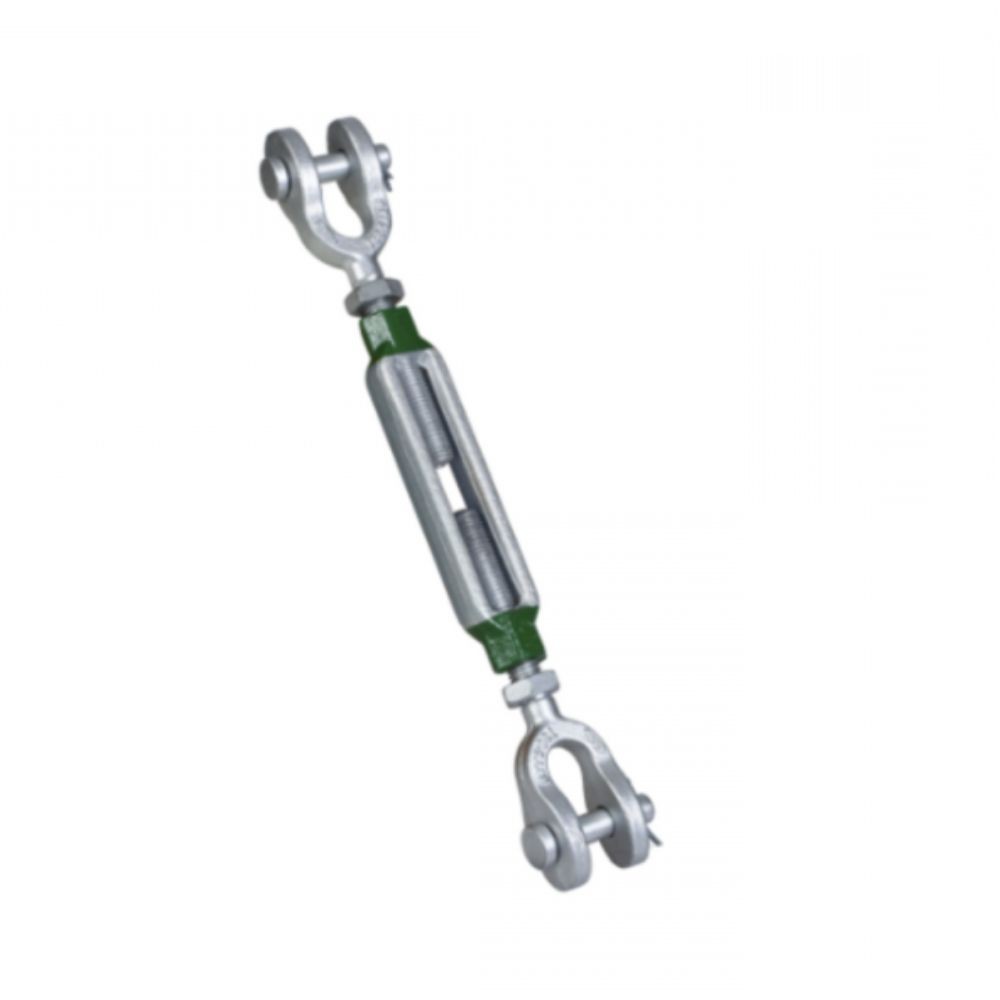

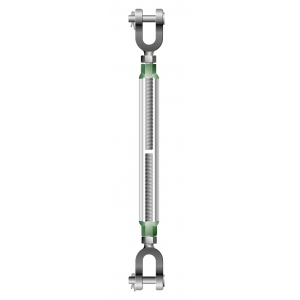

    • The SGGPGG high strength clevis/clevis turnbuckle is manufactured from high strength forged steel SAE 1035 or 1045. The turnbuckle has a galvanised finish. The breaking load of the high strength clevis/tensioner is obtained by multiplying the WLL by the safety factor 5.

      The turnbuckle is a metal accessory used to join stainless steel cables to the structure on which they are hung. Tensioners ensure the rigidity and strength of an installation.

      The high strength turnbuckle complies with ASTM F1145-92

    Product details

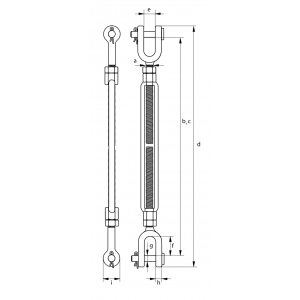

    RéférenceC.M.U.Ø filetageLongueur intérieure corpsLongueur position ferméeLongueur position ouverteLongueur position ferméeOuverture chapeLongueur intérieureØ axeEpaisseur œil de chapeØ œil de chapePoids
     [t]a [pouces][pouces]b [mm]c [mm]d [mm]e [mm]f [mm]g [mm]h [mm]i [mm][kg]
    SGGPGG10060.543/86273409304122179210.55
    SGGPGG12061½630443534316261011250.96
    SGGPGG12091½937958841816261011251.18
    SGGPGG12121½1245574049416261011251.5
    SGGPGG16061.595/8634646940618321314331.75
    SGGPGG16091.595/8942162248018321314332.14
    SGGPGG16121.595/81249877455718321314332.43
    SGGPGG19062.36¾636948743924381616412.7
    SGGPGG19092.36¾944464051424381616413.23
    SGGPGG19122.36¾1252079259024381616413.57
    SGGPGG19182.36¾18670109674024381616414.55
    SGGPGG22123.277/81256182663827421919485.22
    SGGPGG22183.277/818713113279027421919486.56
    SGGPGG25064.541644755453231502220545.54
    SGGPGG25124.5411259885968331502220546.96
    SGGPGG25184.54118750116883531502220548.4
    SGGPGG25244.5124903147098831502220548.9
    SGGPGG32126.91 ¼12643916748447128266811.9
    SGGPGG32186.91 ¼188051230910447128266813.6
    SGGPGG32246.91 ¼2496415411069447128266814.2
    SGGPGG38129.711 ½12675942806527135288018.5
    SGGPGG38189.711 ½188251244956527135288019.3
    SGGPGG38249.711 ½2498015511111527135288022
    SGGPGG451812.71 ¾1893813161092608641339030
    SGGPGG452412.71 ¾24108916211243608641339033
    SGGPGG502416.82241153167313386393504010750
    SGGPGG642427.22 ½2412551831148075114574114392
    SGGPGG6924342 ¾24134818821604901107041158109
