NON-ROTATING LIFTING CABLE COMPACT NRHD 24
CHP8NRHDC24x7AM
Product description

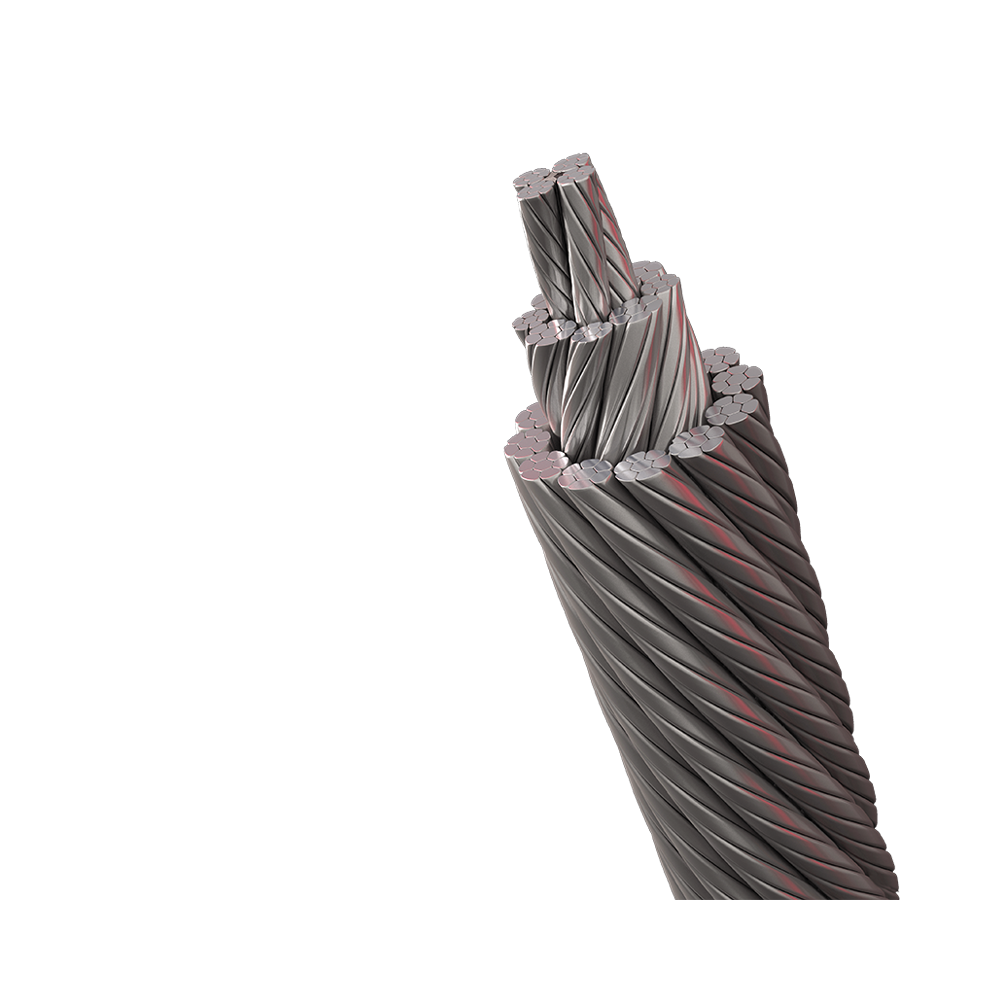

The compact NRHD 24 C is a non-rotating hoisting rope for high lift applications such as tower cranes, mobile crawler cranes, offshore operations or any high lift device.
The main characteristics of NRHD 24 C rope are bending fatigue resistance, very good abrasion behavior in multi-layer winding and a high degree of flexibility. The compacted version of the rope improves its abrasion behavior during multilayer winding.
Composition:

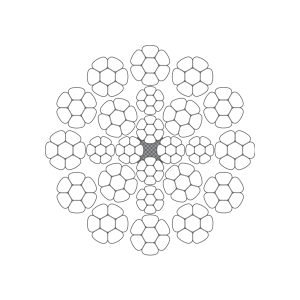

24 strands of 7 wires from 7.2 mm to 22 mm diameter

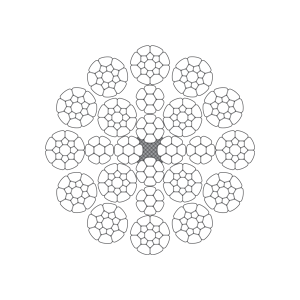

24 strands of 17 wires from 24 mm diameter
The price is for 1M of cable. For more lengths, please contact our customer service.
Product details
| Ø câble | Section | Poids | Charge de rupture minimale |
| mm | mm | kg/m | 2160 N/mm2 |
| 8 | 34,4 | 0,31 | 56 |
| 9 | 43,6 | 0,39 | 71 |
| 10 | 53,8 | 0,48 | 88 |
| 11 | 65,1 | 0,58 | 107,4 |
| 12 | 77,5 | 0,69 | 127 |
| 12,5 | 84,1 | 0,75 | 138 |
| 13 | 91 | 0,81 | 147 |
| 14 | 106 | 0,94 | 175 |
| 15 | 121,1 | 1,07 | 197 |
| 16 | 137,8 | 1,22 | 224 |
| 18 | 174,4 | 1,54 | 283 |
| 19 | 194,3 | 1,72 | 315 |
| 20 | 215,3 | 1,91 | 350 |
| 21 | 237,3 | 2,1 | 385 |
| 22 | 260,5 | 2,31 | 423 |
| 24 | 314,1 | 2,87 | 507 |
| 25,4 | 351,9 | 3,21 | 568 |
| 28 | 427,6 | 3,9 | 690 |
| 30 | 490,8 | 4,48 | 792 |
| 32 | 558,5 | 5,09 | 901 |
| 34 | 630,5 | 5,75 | 1017 |
| 36 | 697,5 | 6,23 | 1105 |
| 38 | 777,1 | 6,94 | 1231 |
| 40 | 850,9 | 7,63 | 1364 |
| 42 | 949,3 | 8,48 | 1503 |
| 44 | 1041,9 | 9,3 | 1650 |
The compact NRHD 24 C is a non-rotating hoisting rope for high lift applications such as tower cranes, mobile crawler cranes, offshore operations or any high lift device.
The main characteristics of NRHD 24 C rope are bending fatigue resistance, very good abrasion behavior in multi-layer winding and a high degree of flexibility. The compacted version of the rope improves its abrasion behavior during multilayer winding.
Composition:
24 strands of 7 wires from 7.2 mm to 22 mm diameter
24 strands of 17 wires from 24 mm diameter
The price is for 1M of cable. For more lengths, please contact our customer service.
