ELECTRIC WINCH MOTORBOX 150 TO 500KG
MOTORBOX 150 CD 6
Product description

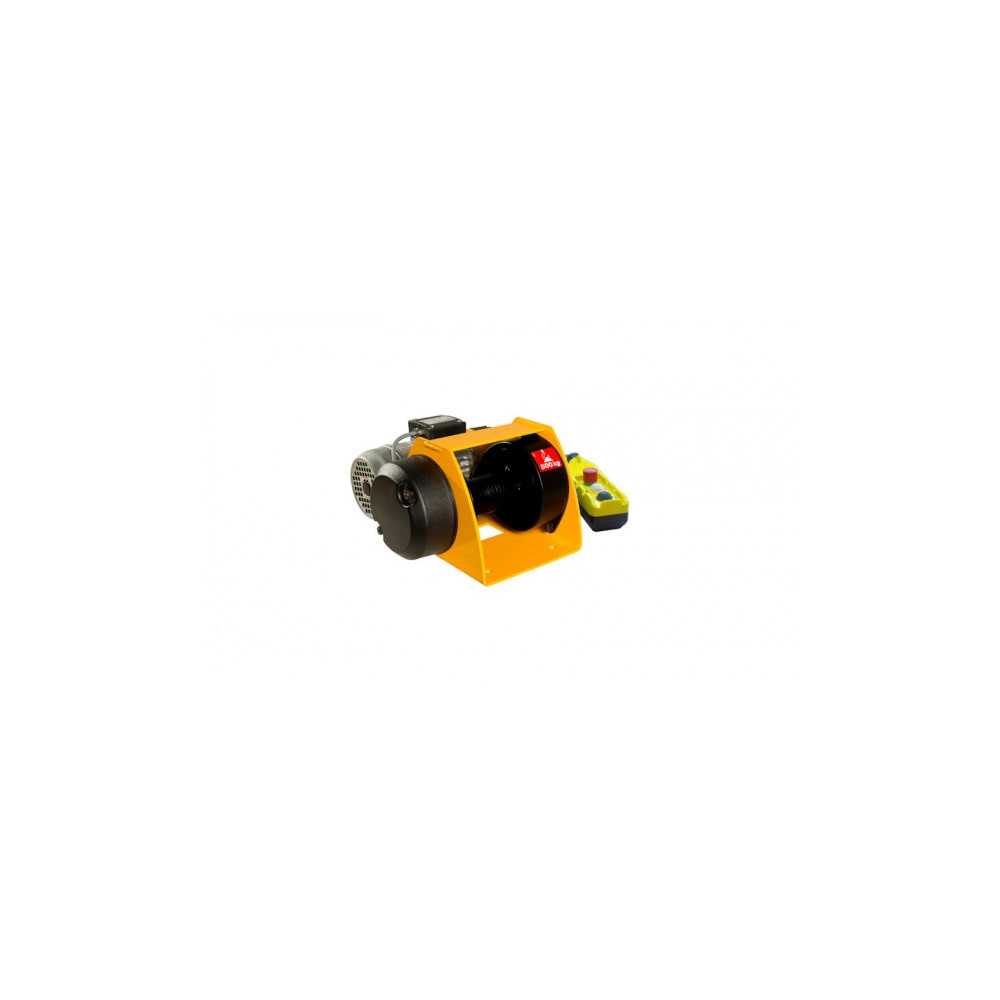

The motorized electric winch of the brand HUCHEZ, model MOTORBOX is a lifting device which has a mechanically welded, shot-blasted and painted steel drum. The mechanical parts of the winch are machined and protected by cataphoresis.
This lifting product works with electricity in single-phase supply (230 V - 50 hz). Moreover, the motorized winch has a direct control (CD) reserved for users protected from bad weather.
Finally, the product is available in several variations with a CMU ranging from 150 to 500 kg.
For more information on our lifting product, please consult our customer service.
Product details
| Référence | Force couche supérieur kg | Force 1ère couche kg | Nb de couches | Capacité tambour max. m | Capacité tambour 1ère couche m | Câble ø mm | Vitesse m/min | FEM | Moteur kW | Alimentation | Poids |
| Motorbox 150 CD | 150 | 150 | 3 | 15 | 4 | 4 | 7 | 1Dm | 0,25 | 1 Ph-230V | 14 |
| Motorbox 300 CD | 300 | 300 | 3 | 16 | 4 | 5 | 5,9 | 1Dm | 0,37 | 1 Ph-230V | 27 |
| Motorbox 500 CD | 500 | 500 | 3 | 13,5 | 4 | 6 | 3,6 | 1Dm | 0,37 | 1 Ph-230V | 27 |

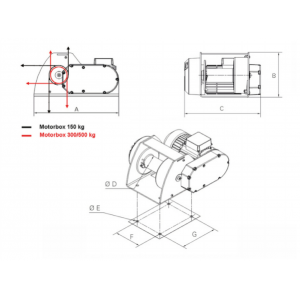

| Référence | A (mm) | B | C | D | E | F | G | I |
| Motorbox 150 CD | 310 | 179 | 281 | 54 | 9 | 114 | 154 | 105 |
| Motorbox 300 CD | 390 | 205 | 341 | 63,5 | 13 | 144 | 200 | 124 |
| Motorbox 500 CD | 390 | 205 | 341 | 63,5 | 13 | 144 | 200 | 124 |
Advices
The motorized electric winch of the brand HUCHEZ, model MOTORBOX is a lifting device which has a mechanically welded, shot-blasted and painted steel drum. The mechanical parts of the winch are machined and protected by cataphoresis.
This lifting product works with electricity in single-phase supply (230 V - 50 hz). Moreover, the motorized winch has a direct control (CD) reserved for users protected from bad weather.
Finally, the product is available in several variations with a CMU ranging from 150 to 500 kg.
For more information on our lifting product, please consult our customer service.
