INDUSTRIA HOOKS 1000KG to 10 000KG, FEM/ISO 1AM/M4
INDUSTRIA_1T_05BT
Product description

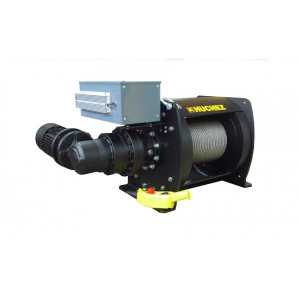

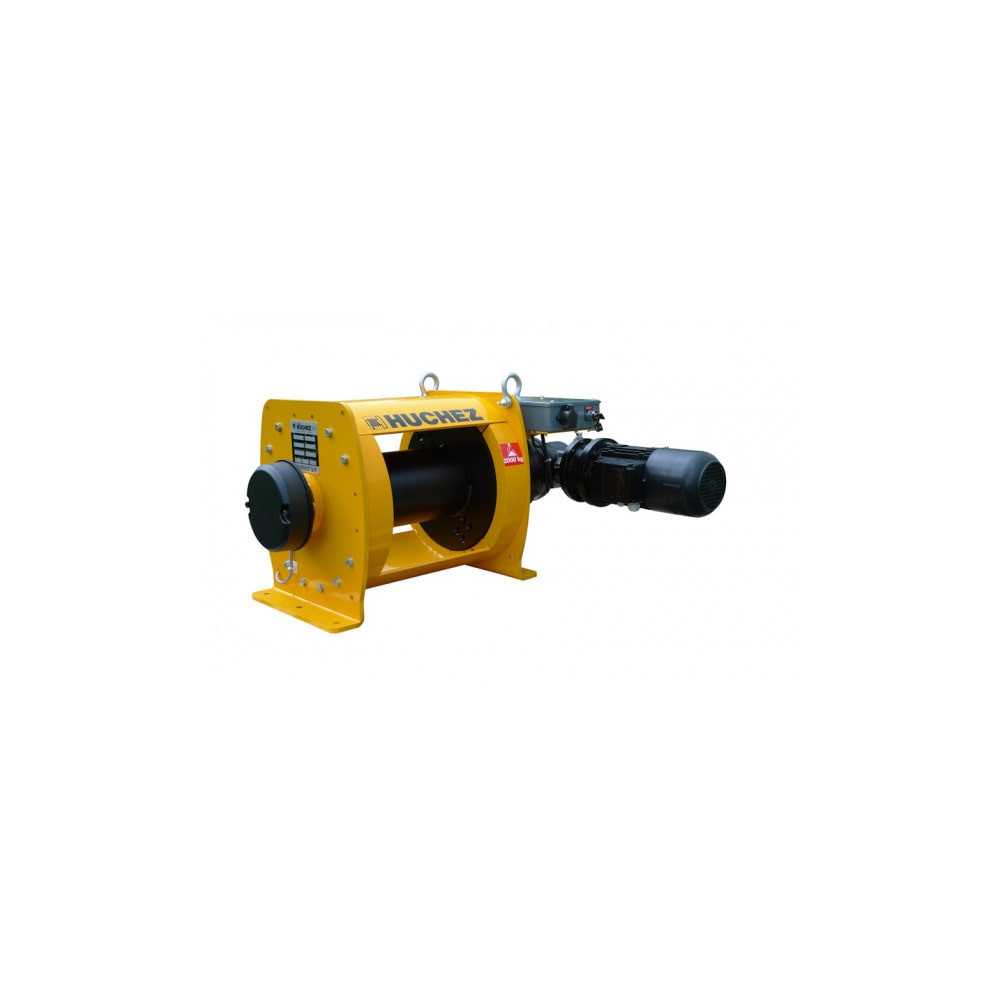

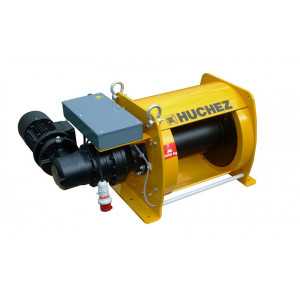

Compact electric winches originally designed to meet the needs of industry in lifting and hauling applications. Vertical mounting possible. The Industria winch is designed for heavy or very heavy use depending on the model.
This winch is equipped with a mechanically welded steel frame and drum, a planetary gearbox, a currentless brake, an electronic load limiter (from 1000kg) and a very low voltage control ensuring protection against electrical risks.
Levagemanutention.com offers you the BT (fixed speed) or VV (variable speed) version. Single-phase 230V-50Hz or three-phase 230/400V-50Hz power supply depending on the model.
For any other request, please fill in the quotation request form.
Product details
| Référence | Force couche supérieur kg | Force 1ère couche kg | Nb de couches | Capacité tambour max. m | Capacité tambour 1ère couche m | Câble ø mm | Vitesse Couche sup. m/min | Vitesse 1 ère couche m/min | FEM | Moteur kW | Alimentation (Ph-V) | Poids | |
| INDUSTRIA 1T | 05BT | 1000 | 1255 | 3 | 60 | 17 | 8 | 5 | 4 | 1Am | 1,1 | 3 Ph-230V/400 | 140 |
| INDUSTRIA 1T | 10BT | 1000 | 1255 | 3 | 60 | 17 | 8 | 10,5 | 8,5 | 1Am | 2,2 | 3 Ph-230V/400 | 150 |
| INDUSTRIA 2T | 05BT | 2000 | 2420 | 3 | 71 | 20 | 11,5 | 5,5 | 4,5 | 1Am | 2,2 | 3 Ph-230V/400 | 260 |
| INDUSTRIA 2T | 09BT | 2000 | 2420 | 3 | 71 | 20 | 11,5 | 9,5 | 8 | 1Am | 4 | 3 Ph-230V/400 | 280 |
| INDUSTRIA 3T | 03BT | 3000 | 3765 | 3 | 59 | 16 | 14 | 3,5 | 2,5 | 1Am | 2,2 | 3 Ph-230V/400 | 260 |
| INDUSTRIA 3T | 06BT | 3000 | 3765 | 3 | 59 | 16 | 14 | 5,5 | 4,5 | 1Am | 4 | 3 Ph-230V/400 | 280 |

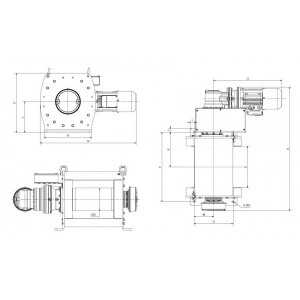

| Modèles | Modèles | Modèles | A mm | B mm | C mm | Ø D mm | E mm | F mm | G mm | Ø H mm | N mm |
| INDUSTRIA | 1T ortho. | 05/10BT | 911/911/931 | 290 | 375 | 125 | 350 | 525 | 240 | 12 | 716/748/909 |
| INDUSTRIA | 2T ortho. | 05/09BT | 1050/1045/1070 | 420 | 500 | 219,1 | 350 | 590 | 330 | 16 | 823/902/1040 |
| INDUSTRIA | 3T ortho. | 03/06BT | 1065/1090/1085 | 420 | 579/500 | 219,1 | 350 | 590 | 330 | 16 | 823/902/1040 |
| INDUSTRIA | 4T ortho. | 02/05BT | 1169/1194/1161 | 520 | 737/665 | 292 | 350 | 600 | 420 | 22 | 905/1052/1157 |
| INDUSTRIA | 5T ortho. | 03/07BT | 1194/1220/1195 | 520 | 665 | 292 | 350 | 600 | 420 | 22 | 1022/1122/1296 |
| INDUSTRIA | 6T ortho. | 02/06BT | 1224/1250/1225 | 650 | 765 | 323,9 | 350 | 600 | 420 | 22 | 1067/1220/1355 |
| INDUSTRIA | 7T ortho. | 02/06BT | 1241/1267/1248 | 700 | 870 | 323,9 | 350 | 720 | 620 | 30 | 1103/1271/1540 |
| INDUSTRIA | 8T ortho. | 02/05BT | 1241/1340/1248 | 700 | 870 | 355,6 | 350 | 720 | 620 | 30 | 1133/1271/1540 |
| INDUSTRIA | 9T ortho. | 02/05BT | 1288/1367/1468 | 840 | 975 | 406,4 | 350 | 720 | 750 | 32 | 1176/1314/1590 |
| INDUSTRIA | 10T ortho. | 03/05BT | 1288/1367/1459 | 840 | 975 | 406,4 | 350 | 720 | 750 | 32 | 1176/1314/1591 |
| INDUSTRIA | 1T coaxial | 05/10BT | 1159/1189 | 290 | 375 | 125 | 350 | 525 | 240 | 12 | 443 |
Advices
Compact electric winches originally designed to meet the needs of industry in lifting and hauling applications. Vertical mounting possible. The Industria winch is designed for heavy or very heavy use depending on the model.
This winch is equipped with a mechanically welded steel frame and drum, a planetary gearbox, a currentless brake, an electronic load limiter (from 1000kg) and a very low voltage control ensuring protection against electrical risks.
Levagemanutention.com offers you the BT (fixed speed) or VV (variable speed) version. Single-phase 230V-50Hz or three-phase 230/400V-50Hz power supply depending on the model.
For any other request, please fill in the quotation request form.
