Product description

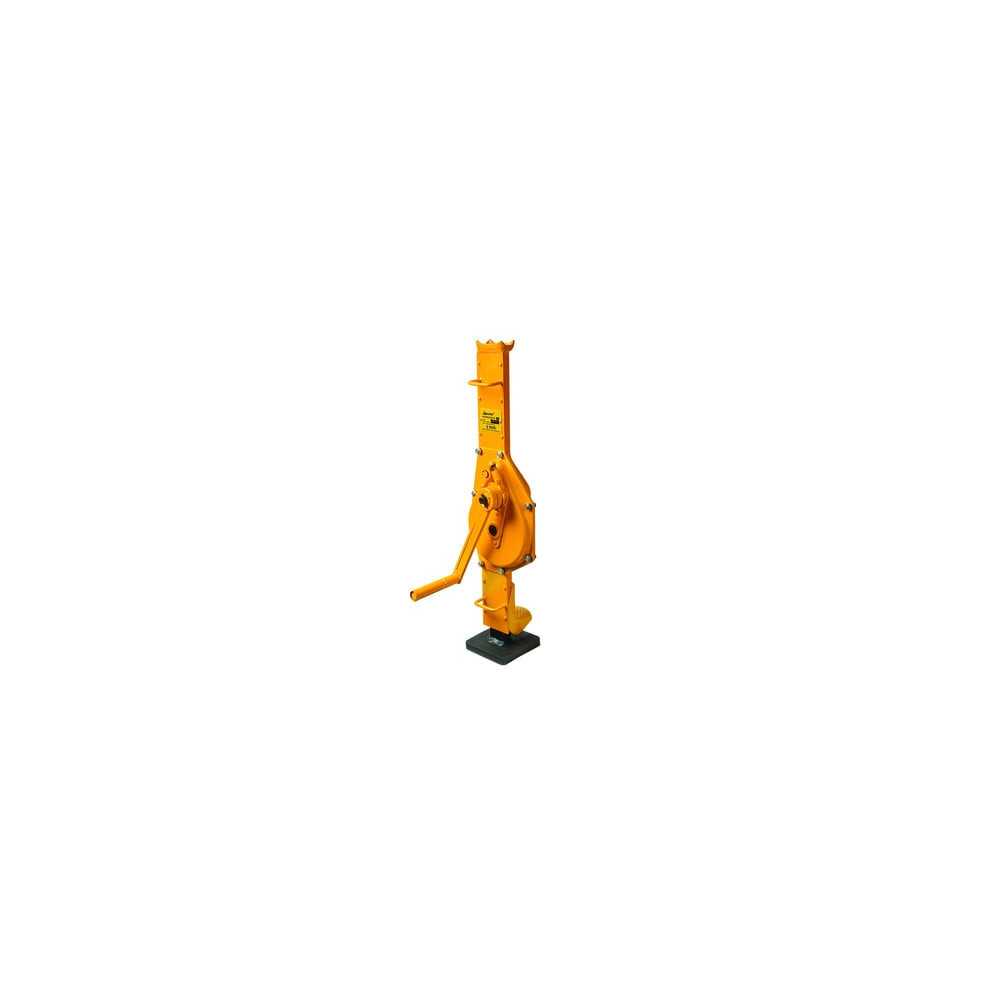

The rack jack is a lifting device with the reference DC.0.DK. The jack is made of high-strength forged steel, which makes it robust and easy to use. The load-bearing parts of the device are extra hardened. This product can be used in any direction. In addition, it has a double ratchet safety lever. Transport is easy thanks to the folding handles and levers.
The lifting device is available in several versions with a WLL of 1,500 to 20,000 kg.
For more information on this lifting product, please contact our customer service.
Product details
| Reference | Capacity | Test load | Lifting height | Effort for max loading | Net weight |
| [kg] | [kN] | [mm] | [N] | [kg] | |
| DC.0.DK.015 | 1500 | 16.5 | 300 | 190 | 10.7 |
| DC.0.DK.03 | 3000 | 33 | 355 | 196 | 21.3 |
| DC.0.DK.05 | 5000 | 55 | 330 | 235 | 28.9 |
| DC.0.DK.10 | 10000 | 110 | 360 | 431 | 47 |
| DC.0.DK.20 | 20000 | 220 | 315 | 650 | 72 |

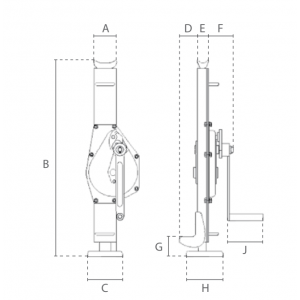

| Capacité | A | B | C | D | E | F | G | H | J |
| 1500 | 77 | 605 | 100 | 55 | 40 | 74 | 55 | 110 | 126 |
| 3000 | 84 | 720 | 130 | 65 | 48 | 89 | 55 | 140 | 126 |
| 5000 | 106 | 735 | 140 | 70 | 65 | 97 | 60 | 175 | 126 |
| 10000 | 122 | 795 | 140 | 90 | 74 | 115 | 70 | 175 | 250 |
| 20000 | 153 | 840 | 150 | 90 | 90 | 132 | 90 | 185 | 250 |
The rack jack is a lifting device with the reference DC.0.DK. The jack is made of high-strength forged steel, which makes it robust and easy to use. The load-bearing parts of the device are extra hardened. This product can be used in any direction. In addition, it has a double ratchet safety lever. Transport is easy thanks to the folding handles and levers.
The lifting device is available in several versions with a WLL of 1,500 to 20,000 kg.
For more information on this lifting product, please contact our customer service.
