MAGNETIC CARRIER BZIM

13IMA00100BEZ
€280.35 Tax excluded
CMU EN KG
FORCE DE RUPTURE EN N
Quantity

REQUEST A QUOTE
close

Contact form


Paiement 100% sécurisé
visa visa visa visa
visaSERVICE CLIENT DISPONIBLE AU
03.28.25.93.88

DU LUNDI AU VENDREDI
visaFRAIS DE PORTS
OFFERTS

A PARTIR DE 300€ HT
visaFABRICATION DANS NOS
5 ATELIERS

EN FRANCE

Product description

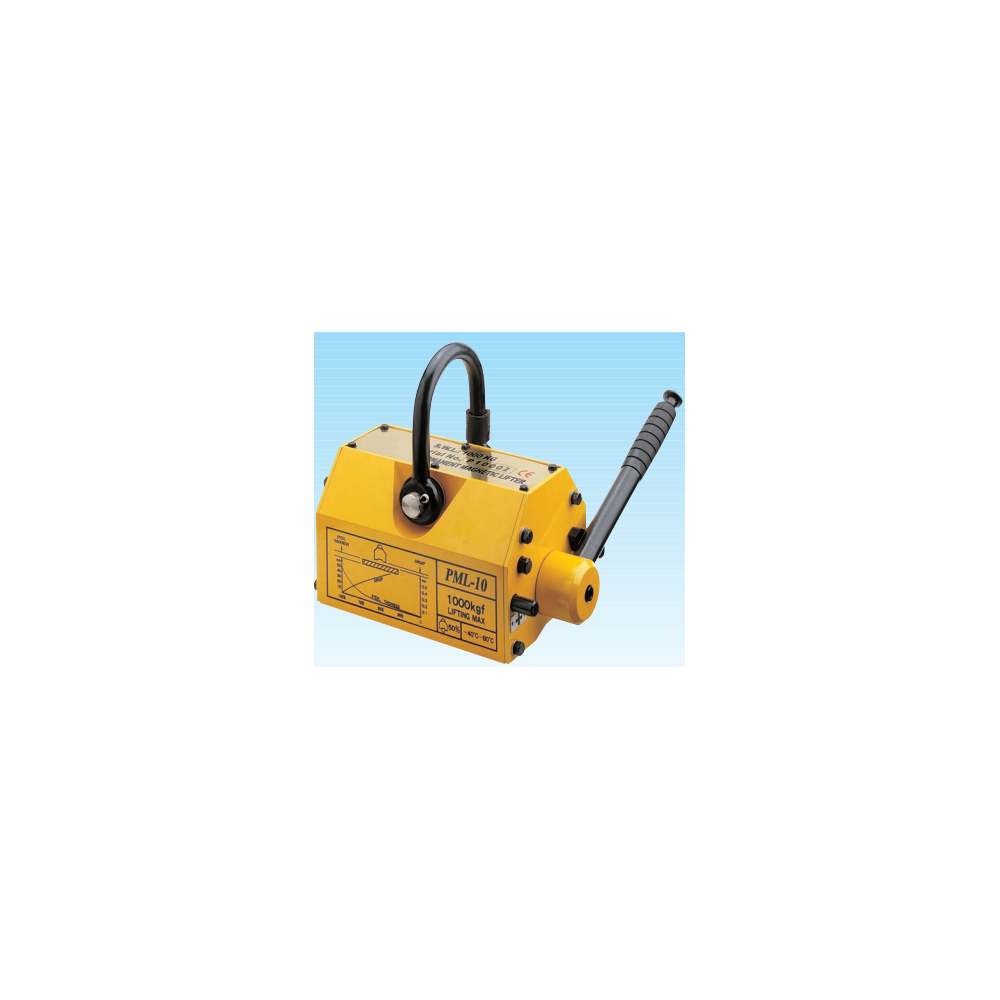

The BZIM pro magnetic lifter is light, easy to handle and suitable for lifting steel parts without leaving marks. Magnetic lifters ensure a high, concentrated, constant and unlimited force over time.

The lifting force of the magnetic carrier varies depending on the steel grade, thickness and contact surface.

The magnet is activated and deactivated with the simple movement of the lever. A safety system locks the lever when lifting the workpiece to prevent accidental deactivation.

The safety factor of the magnetic carrier is 3/1.



Product details

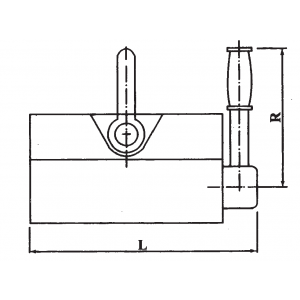

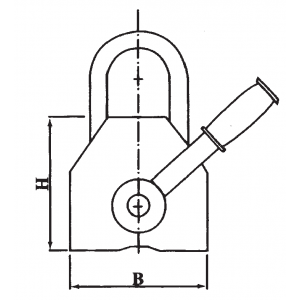

Référence Capacité d’élévation kg Dimensions en mm Dimensions en mm Dimensions en mm Dimensions en mm Force de rupture N Poids en kg
    L B H R
PA0T1 100 92 62 67 126 350 3
PA0T3 300 162 92 91 150 1050 10
PA0T6 600 232 122 117 196 2100 24
PA1T 1000 258 176 163 284 3500 50
PA2T 2000 378 234 212 426 7000 125
PA3T 3000 458 286 264 521 10500 220
PA6T 6000 600 430 355 180 21000 420
