Product description

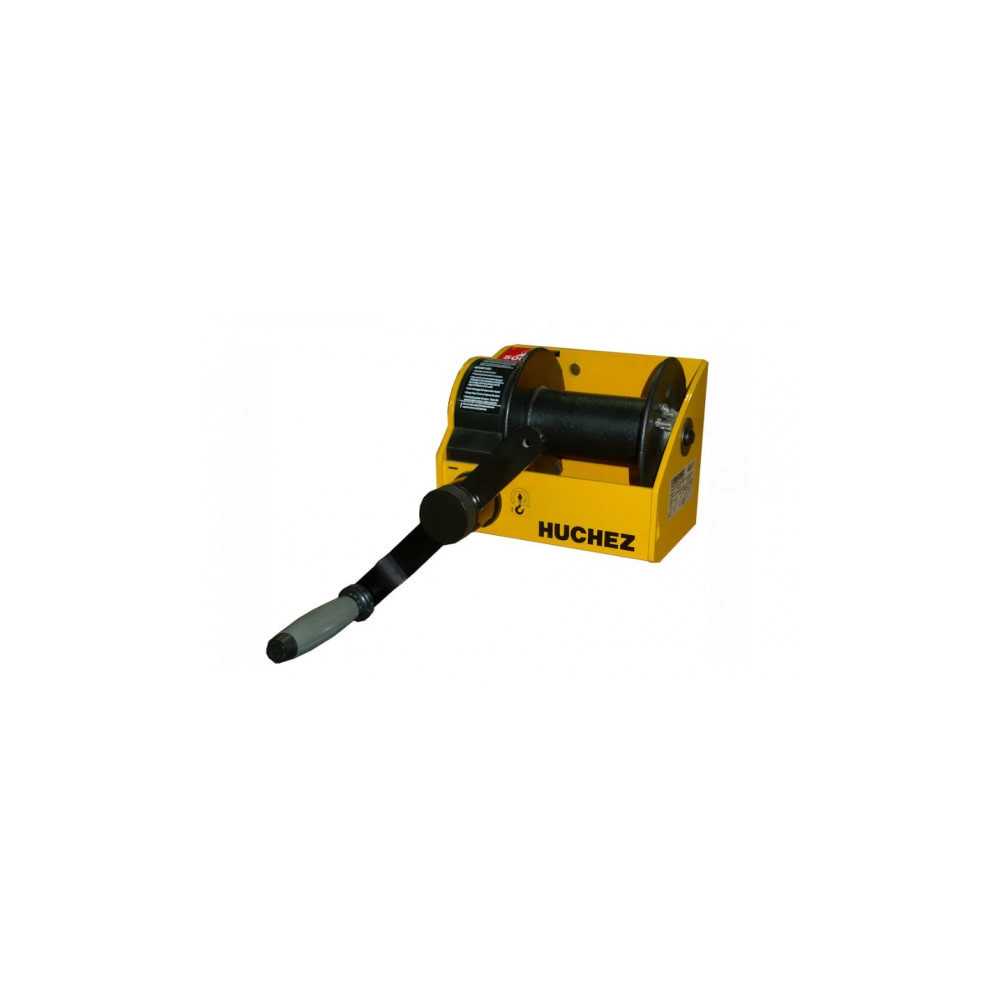

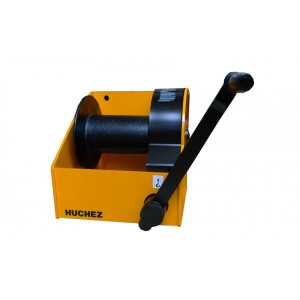

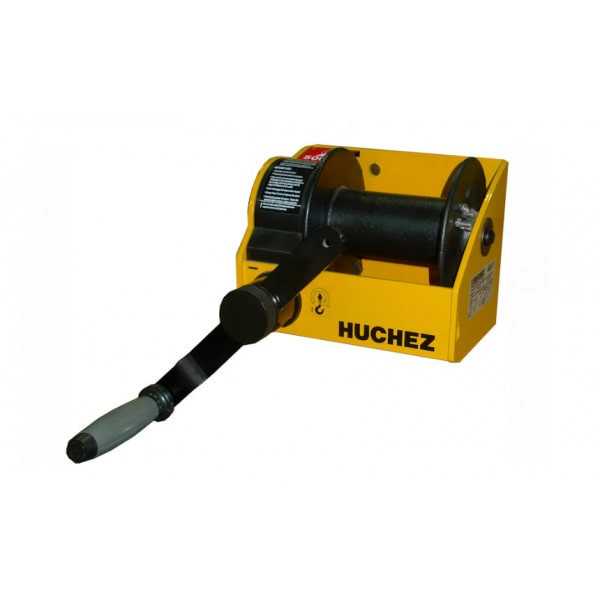

^The HUCHEZ brand manual worm gear hoist is a very strong hoisting device with a housing made of steel. This lifting product is used for lifting and pulling operations. For more safety, the automatic brake works with a patented anti-return system. In addition, for the safety of the users and the protection of the mechanism, these winches are equipped with an easily removable housing.
Its steel frame is extremely rigid. It can be painted or galvanized or stainless steel. Ergonomically, the lifting winch's crank is adjustable with a rotating handle. Finally, the drum can be disengaged by means of a small lever (except for the 250 and 320 kg models).

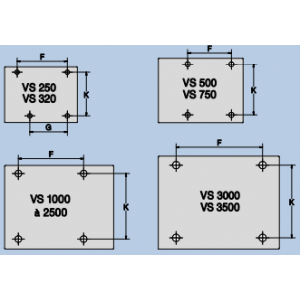

The fixation is done in 4 points, widely distributed for a balanced anchorage.
The lifting and pulling product is available with a GVW of 250 to 15,000 kg and a rope diameter of 5 to 16 mm. For more information, please contact our customer service.
Product details

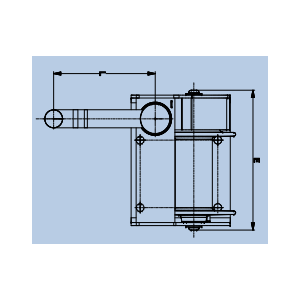

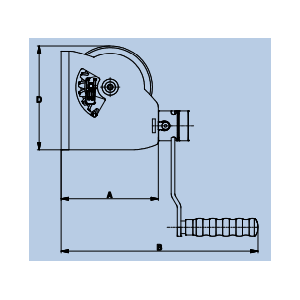

^| Dimensions | A mm | B mm | D mm | E mm | F mm | G mm | K mm | L mm |
| VS 250 | 140 | 307 | 142 | 206 | 130 | 95 | 100 | 240 |
| VS 320 | 140 | 307 | 142 | 206 | 130 | 95 | 100 | 240 |
| VS 500 | 162 | 325 | 175 | 233 | 112 | - | 130 | 240 |
| VS 750 | 162 | 325 | 175 | 233 | 112 | - | 130 | 240 |
| VS 1000 | 302 | 470 | 302 | 322 | 167 | - | 250 | 340 |
| VS 1450 | 302 | 470 | 302 | 322 | 167 | - | 250 | 340 |
| VS 1500 | 350 | 518 | 330 | 370 | 200 | - | 250 | 340 |
| VS 2000 | 350 | 518 | 330 | 370 | 200 | - | 250 | 340 |
| VS 2000 | 356 | 520 | 390 | 420 | 260 | - | 295 | 340 |
| VS 2500 | 356 | 520 | 390 | 420 | 260 | - | 295 | 340 |
| VS 3000 | 480 | 640 | 450 | 530 | 390 | - | 380 | 340 |
| VS 3500 | 480 | 640 | 450 | 530 | 390 | - | 380 | 340 |
| Référence | Force 1ère couche kg | Force couche supérieure kg | Nombre de couches | Câble cap. 1ère couche m | Câble cap. Couche supérieure m | Ø câble mm | Levée par tour de manivelle mm | Effort maxi. à la manivelle kg | Poids kg |
| VS 250 | 380 | 250 | 4 | 2,5 | 15 | 5 | 17 | 11 | 7,5 |
| VS 320 | 380 | 320 | 2 | 2,5 | 6 | 6 | 17 | 11 | 7,5 |
| VS 500 | 750 | 500 | 4 | 3 | 18 | 7 | 11 | 14 | 12 |
| VS 750 | 750 | 750 | 1 | 3 | 3 | 7 | 11 | 14 | 12 |
| VS 1000 | 1450 | 1000 | 4 | 5,5 | 30 | 9 | 8 | 14 | 37,5 |
| VS 1450 | 1450 | 1450 | 1 | 5 | 5 | 10 | 8 | 14 | 37,5 |
| VS 1500 | 2000 | 1500 | 3 | 5,5 | 23 | 11,5 | 6 | 14 | 52 |
| VS 2000 | 2000 | 2000 | 1 | 5,5 | 6 | 12 | 6 | 14 | 52 |
| VS 2000 | 2500 | 2000 | 2 | 7 | 17 | 13 | 5 | 14,5 | 80 |
| VS 2500 | 2500 | 2500 | 1 | 7 | 6 | 13 | 5 | 14,5 | 80 |
| VS 3000 | 3500 | 3000 | 2 | 7,5 | 18,5 | 15,8 | 3 | 15 | 140 |
| VS 3500 | 3500 | 3500 | 1 | 7,5 | 7,5 | 16 | 3 | 15 | 140 |
