MANUAL GEAR HOIST

GR300
€516.15 Tax excluded
CMU EN KG
DIAMETRE CABLE MM
Quantity

REQUEST A QUOTE
close

Contact form


Paiement 100% sécurisé
visa visa visa visa
visaSERVICE CLIENT DISPONIBLE AU
03.28.25.93.88

DU LUNDI AU VENDREDI
visaFRAIS DE PORTS
OFFERTS

A PARTIR DE 300€ HT
visaFABRICATION DANS NOS
5 ATELIERS

EN FRANCE

Product description

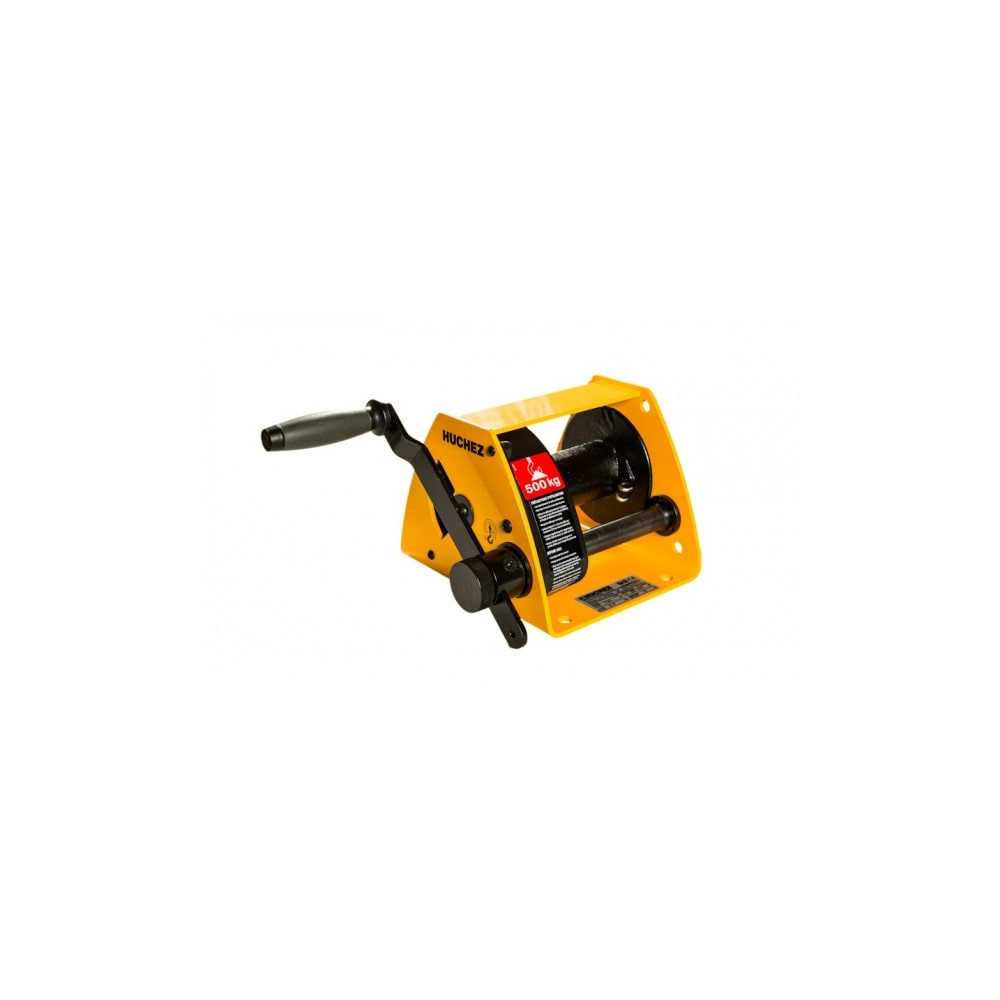

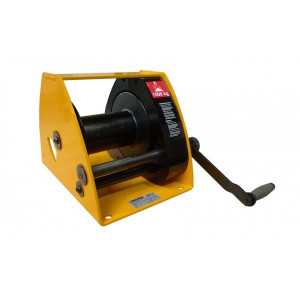

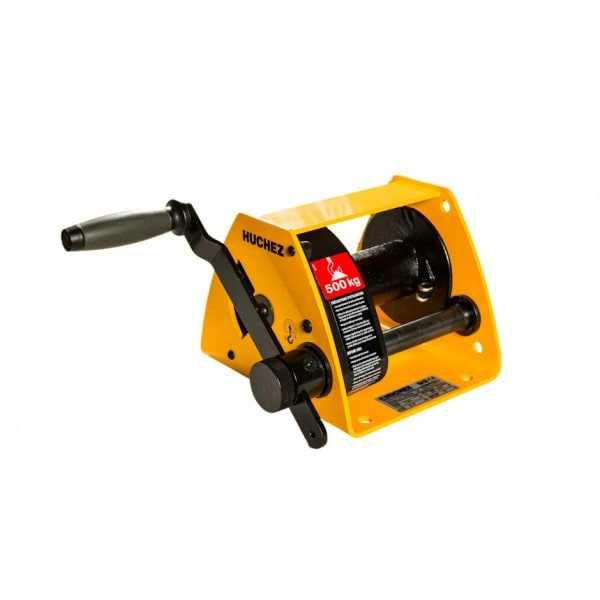

The HUCHEZ brand manual gear hoist is a very strong hoisting device with a housing made of steel. This lifting product is used for lifting operations only. For more safety, the automatic brake made of composite material works with a patented anti-reverse system. In addition, for the safety of the users and the protection of the mechanism, these winches are equipped with an easily removable housing.

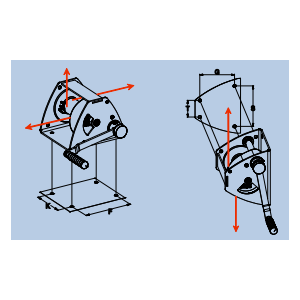

Its steel frame is extremely rigid. It can be painted or galvanized or stainless steel. Ergonomically, the lifting winch's crank is adjustable with a rotating handle. Finally, the drum can be disengaged only when empty, associated with a system that prevents the cable from being wound up in reverse. Multi-position installation: horizontal or surface mounted with 4 fixing points.
The lifting product is available with a GVW of 300 to 2 750 kg and a rope diameter of 5 to 13 mm.

Product details

Référence Force 1ère couche kg Force couche supérieure kg Nombre de couches Câble cap. 1ère couche m Câble cap. Couche supérieure m Ø câble mm Levée par tour de manivelle mm Effort maxi. à la manivelle kg Poids kg
GR 300 500 300 6 4 38 5 30.5 12.5 15
GR 530 530 530 1 4 4 6 30.5 12.5 15
GR 500 750 500 4 3 18 7 31.5 19 15
GR 750 750 750 1 3 3 7 31.5 19 15
GR 1000 1450 1000 4 5.5 30 9 16 14.5 44
GR 1450 1450 1450 1 5 5 10 16 14.5 44
GR 2000 2750 2000 3 6 25 13 9.5 16.5 83
GR 2750 2750 2750 1 6 6 13 9.5 16.5 83

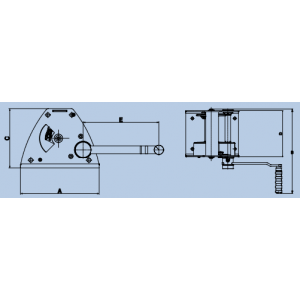

Dimensions A mm B mm C mm D mm E mm F mm G mm K mm S mm T mm
GR 300 249 400 190 217 240 200 145 144 184 76
GR 530 249 400 190 217 240 200 145 144 184 76
GR 500 249 400 190 217 240 200 145 144 184 76
GR 750 249 400 190 217 240 200 - 144 - -
GR 1000 410 485 305 300 340 370 - 236 - -
GR 1450 410 485 305 300 340 370 - 236 - -
GR 2000 510 585 360 400 340 440 - 325 - -
GR 2750 510 585 360 400 340 440 - 325 - -
