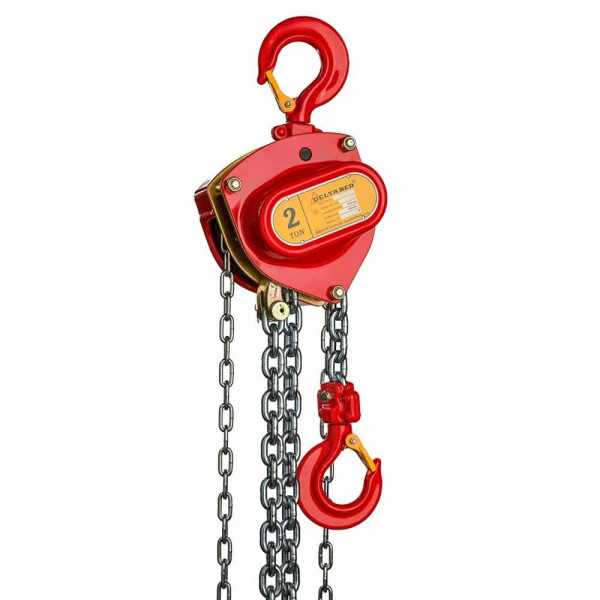

^Get this DELTA RED manual chain hoist from the premium range, a quality lifting device at a low price !
This hoist is ideal for manual load lifting situations. This hoist has precision manufactured shafts, sprockets and gears to ensure smooth operation of the hoist. You'll also find a heavy-duty double housing that offers protection against dust and water. In addition, the robust housing of the manual hoist is resistant to external shocks without damaging the bearing alignment. It has an easy maintenance system as its brake and gearbox are easily accessible for maintenance and inspection.
What are the features of the Premium manual chain hoist ?
The Premium range is more corrosion resistant than the conventional manual hoist range due to its improved closed cylindrical roller bearings. In addition, the improved housing offers a lighter weight and easier product operation.
We have selected products with 3, 6 and 10 meters strokes, however other lifting heights are available on request. You also have the possibility to choose this hoist without chain.
This lifting product complies with the Machinery Directive 2006/42/EC. It is delivered with a test certificate, a CE declaration of conformity and operating instructions.
Product details
^| Reference | Capacity | Lifting chain | Number of strands | Test load | Max. loading force | Manuel chain for 1m | Weight | Additionnal weight |
| [T] | Øxmm | kN | N | m | kg | kg/m | ||
| DR.0.04100500 | 0.5 | 5x15 | 1 | 6.1 | 186 | 34 | 3.8 | 1.4 |
| DR.0.04101000 | 1 | 6x18 | 1 | 12.3 | 270 | 42 | 6.2 | 1.7 |
| DR.0.04101500 | 1.5 | 8x24 | 1 | 18.4 | 345 | 56 | 9.2 | 2.4 |
| DR.0.04102000 | 2 | 8x24 | 1 | 24.5 | 460 | 73 | 9.8 | 2.4 |
| DR.0.04103000 | 3 | 8x24 | 2 | 36.8 | 355 | 112 | 10.5 | 3.9 |
| DR.0.04105000 | 5 | 10x30 | 2 | 61.1 | 462 | 164 | 21.7 | 5.5 |
| DR.0.04111000 | 10 | 10x30 | 4 | 122.5 | 488 | 327 | 53.1 | 10.1 |
| DR.0.04112000 | 20 | 10x30 | 8 | 235.2 | 488x2 | 327x2 | 110.5 | 19.4 |
