Product description

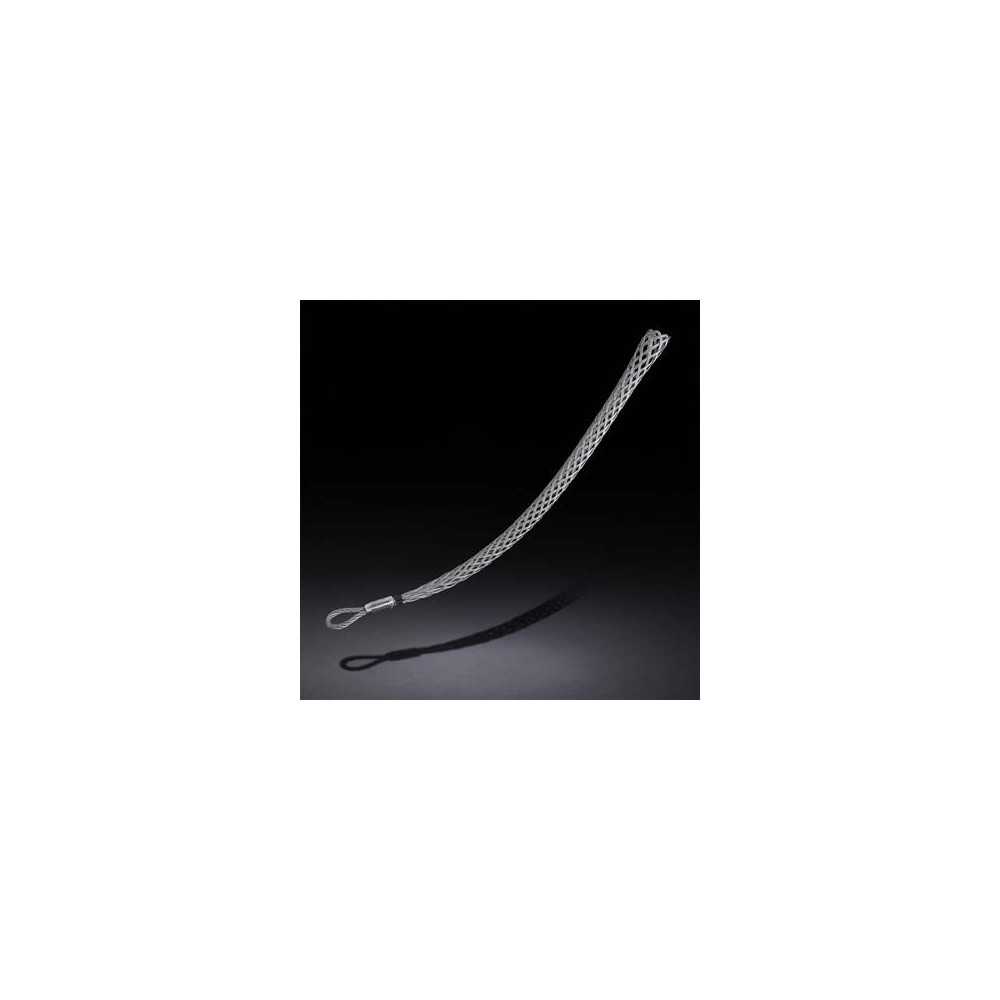

The cable puller with a single sleeved loop is ideal for pulling and laying insulated underground HV electrical cables, low voltage, branch lines, mechanical, industrial or instrumentation cables.
But also for the securing and the effective maintenance of hoses of important diameters or with strong requests.
But also for the securing and the effective maintenance of hoses of important diameters or with strong requests.
Product details

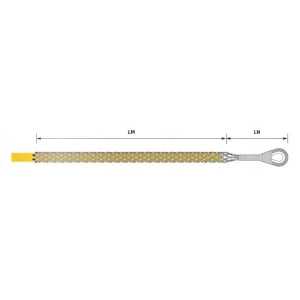

| Référence | Diamètre en mm | plage en mm | LM en mm | LN en mm | Rupture Galva daN | Poids en kg |
| TTSBM5 | 5 | 005 - 008 | 265 | 130 | 790 | 0,03 |
| TTSBM8 | 8 | 008 - 015 | 365 | 130 | 1100 | 0,07 |
| TTSBM15 | 15 | 015 - 025 | 560 | 135 | 2500 | 0,19 |
| TTSBM20 | 20 | 020 - 040 | 615 | 135 | 3900 | 0,28 |
| TTSBM25 | 25 | 025 - 045 | 660 | 140 | 3800 | 0,32 |
| TTSBM45 | 45 | 045 - 060 | 665 | 140 | 7800 | 0,66 |
| TTSBM60 | 60 | 060 - 080 | 760 | 150 | 8900 | 0,81 |
| TTSBM80 | 80 | 080 - 100 | 900 | 200 | 8900 | 1,02 |
| TTSBM100 | 100 | 100 - 140 | 1000 | 200 | 13400 | 1,62 |
| TTSBM140 | 140 | 140 - 190 | 1250 | 200 | 13400 | 1,96 |
| TTSBM190 | 190 | 190 - 240 | 2025 | 250 | 20100 | 3,08 |
The cable puller with a single sleeved loop is ideal for pulling and laying insulated underground HV electrical cables, low voltage, branch lines, mechanical, industrial or instrumentation cables.
But also for the securing and the effective maintenance of hoses of important diameters or with strong requests.
But also for the securing and the effective maintenance of hoses of important diameters or with strong requests.
