Product description

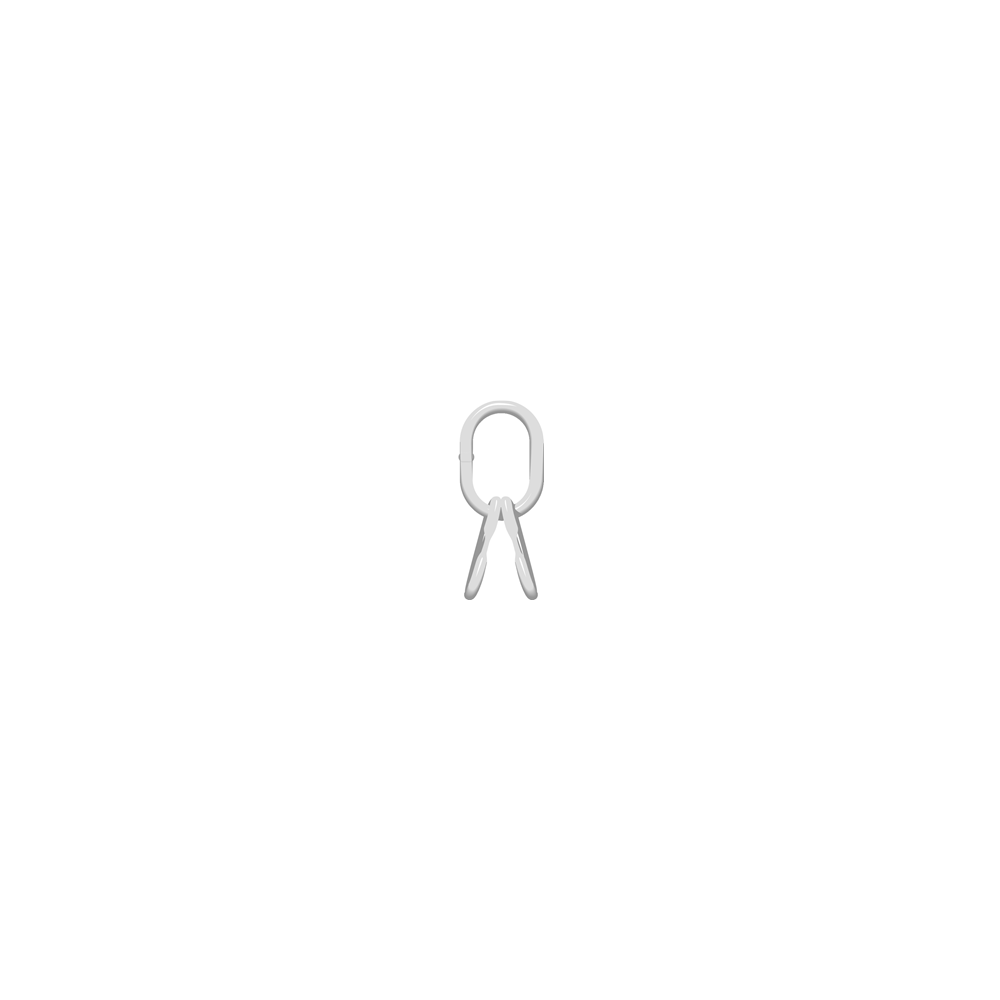

^MTS Grade 80 triple head link is used as a lifting ring in the manufacture of 3 and 4 strand chain and rope slings in our workshops.
All triple head links are suitable for lifting, with a safety factor of 4 times the C.M.U. (Maximum Working Load).
The Grade 80 triple head link is manufactured from alloy steel, hardened and tempered with a yellow, red or white painted finish (please indicate your preferred colour).
Product details

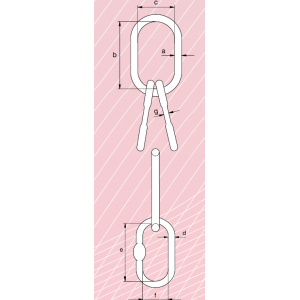

^| Référence | CMU | Dia. Chaîne 3/4 brins | Dia. | Longueur intérieure | Largeur intérieure | Dia. | Longueur intérieure | Largeur intérieure | Epaisseur | Poids | |
| ß≤45° | ß≤60° | a | b | c | d | e | f | g | |||
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| MTS16 | 2.5 | 6 | 6/7 | 16 | 120 | 70 | 13 | 100 | 60 | 7 | 1.16 |
| MTS18 | 3.5 | 7 | 8 | 18 | 135 | 75 | 16 | 100 | 60 | 6 | 1.75 |
| MTS22 | 6.5 | 8 | 10 | 22 | 150 | 90 | 18 | 120 | 70 | 9 | 2.8 |
| MTS25 | 8.5 | 10 | 13 | 25 | 170 | 95 | 20 | 120 | 70 | 11 | 3.82 |
| MTS28 | 10 | - | - | 28 | 200 | 120 | 20 | 120 | 70 | 11 | 4.7 |
| MTS30 | 13 | 13 | 16 | 30 | 200 | 120 | 22 | 135 | 75 | 14 | 5.85 |
| MTS36 | 17 | 16 | 18/19 | 36 | 250 | 150 | 25 | 135 | 75 | 14 | 9.35 |
| MTS38 | 20 | - | 20 | 38 | 250 | 150 | 28 | 170 | 95 | 17 | 11.75 |
| MTS44 | 27 | 18/19/20 | 22 | 45 | 280 | 170 | 33 | 200 | 120 | 17 | 18.5 |
| MTS45 | 30 | - | - | 45 | 300 | 200 | 36 | 200 | 120 | 21 | 22 |
| MTS50 | 40 | 22 | 26 | 50 | 300 | 200 | 38 | 150 | 90 | 21 | 24 |
| MTS55 | 50 | 26 | 32 | 55 | 300 | 200 | 38 | 150 | 90 | 23 | 27 |
| MTS58 | 60 | - | - | 58 | 350 | 200 | 42 | 150 | 90 | - | 34 |
| MTS70 | 80 | 32 | - | 70 | 400 | 250 | 55 | 300 | 150 | - | 72 |
| MTS80 | 100 | - | - | 80 | 400 | 250 | 58 | 300 | 150 | - | 92 |
Advices
MTS Grade 80 triple head link is used as a lifting ring in the manufacture of 3 and 4 strand chain and rope slings in our workshops.
All triple head links are suitable for lifting, with a safety factor of 4 times the C.M.U. (Maximum Working Load).
The Grade 80 triple head link is manufactured from alloy steel, hardened and tempered with a yellow, red or white painted finish (please indicate your preferred colour).
