STAINLESS STEEL EYE/EYE TENSIONER
TAI105
Product description

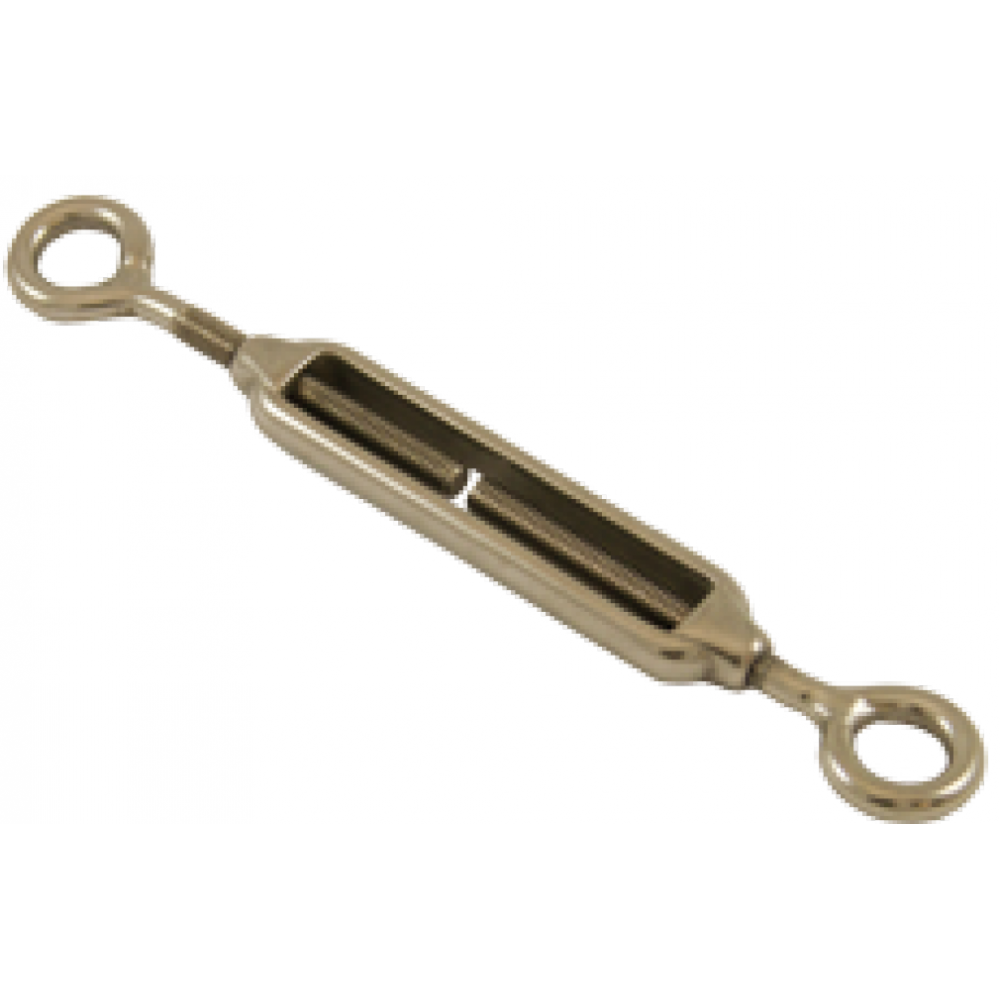

The stainless steel eyebolt, model TAI, is a lifting accessory made of stainless steel, reference AISI 316. The stainless steel turnbuckles are available with different endings; lifting rings, hooks and clevises. These cage turnbuckles (also called "lantern turnbuckles") can support a load up to 1000kg.
The stainless steel eye turnbuckle is available in several possible variations with a WLL of 150 to 1000 kg and a thread from M5 to M20. Its safety coefficient is 4.
For more information about our turnbuckles, please contact our customer service.
Product details

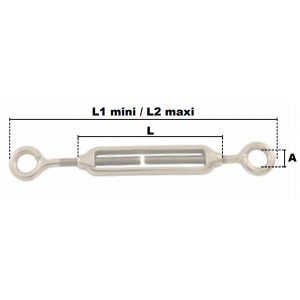

| Référence | Filetage | CMU | A | L | L1 | L2 | Poids |
| [kg] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| TAI105 | M5 | 150 | 8 | 70 | 120 | 174 | 0.045 |
| TAI106 | M6 | 210 | 10 | 90 | 158 | 229 | 0.08 |
| TAI108 | M8 | 320 | 12 | 120 | 207 | 301 | 0.172 |
| TAI110 | M10 | 460 | 15 | 150 | 250 | 368 | 0.265 |
| TAI112 | M12 | 600 | 18 | 200 | 315 | 480 | 0.545 |
| TAI116 | M16 | 740 | 26 | 250 | 400 | 593 | 1.15 |
| TAI120 | M20 | 1000 | 30 | 300 | 485 | 727 | 2.02 |
The stainless steel eyebolt, model TAI, is a lifting accessory made of stainless steel, reference AISI 316. The stainless steel turnbuckles are available with different endings; lifting rings, hooks and clevises. These cage turnbuckles (also called "lantern turnbuckles") can support a load up to 1000kg.
The stainless steel eye turnbuckle is available in several possible variations with a WLL of 150 to 1000 kg and a thread from M5 to M20. Its safety coefficient is 4.
For more information about our turnbuckles, please contact our customer service.
