Product description
^The TCI stainless steel turnbuckle is a lifting accessory made of stainless steel AISI 316. The stainless steel turnbuckles are available with different endings; lifting rings, hooks and clevises. These cage turnbuckles (also called "lantern turnbuckles") can support a load of up to 1000kg.
The tensioner and its stainless steel hook are available in several possible variations with a WLL of 50 to 500 kg and a thread from M5 to M20. Its safety coefficient is 4.
For more information on our turnbuckles, please consult our customer service.
Product details

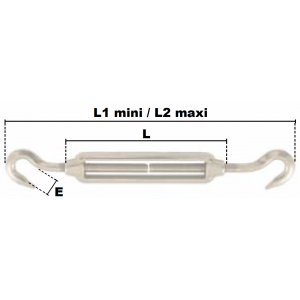

^| Référence | Filetage | CMU | E | L | L1 | L2 | Poids |
| [kg] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| TCI105 | M5 | 50 | 9 | 70 | 128 | 184 | 0.045 |
| TCI106 | M6 | 60 | 10 | 90 | 160 | 228 | 0.075 |
| TCI108 | M8 | 150 | 11 | 120 | 215 | 309 | 0.165 |
| TCI110 | M10 | 230 | 12 | 150 | 265 | 380 | 0.28 |
| TCI112 | M12 | 300 | 15 | 200 | 310 | 480 | 0.51 |
| TCI116 | M16 | 370 | 16 | 250 | 400 | 594 | 1.06 |
| TCI120 | M20 | 500 | 20 | 300 | 490 | 733 | 1.87 |
The TCI stainless steel turnbuckle is a lifting accessory made of stainless steel AISI 316. The stainless steel turnbuckles are available with different endings; lifting rings, hooks and clevises. These cage turnbuckles (also called "lantern turnbuckles") can support a load of up to 1000kg.
The tensioner and its stainless steel hook are available in several possible variations with a WLL of 50 to 500 kg and a thread from M5 to M20. Its safety coefficient is 4.
For more information on our turnbuckles, please consult our customer service.
