Product description

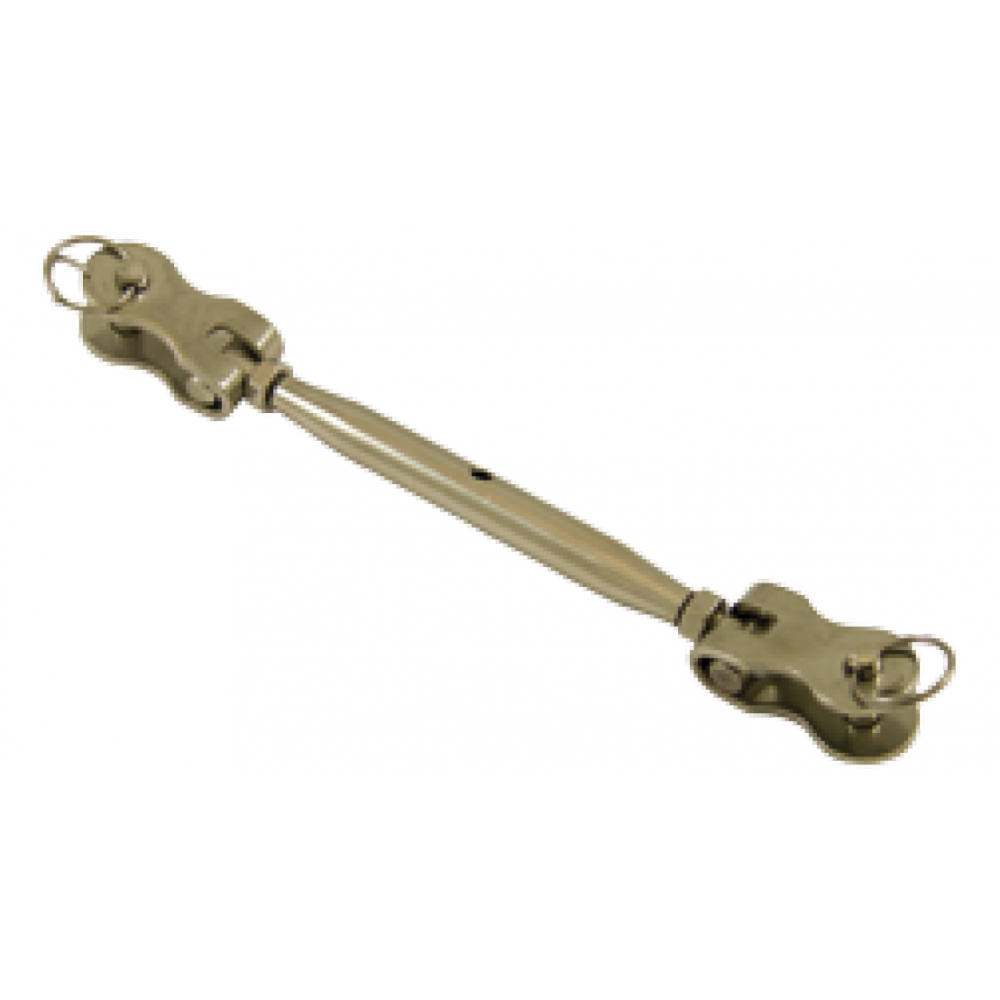

^The stainless steel turnbuckle, model RICA is a lifting accessory manufactured in stainless steel reference AISI 316.
The stainless steel turnbuckle is available in several possible variations with a CMU of 250 to 650 kg and a thread from M6 to M12. Its safety coefficient is 4.
The product is delivered with mounted locknuts.
For more information about our turnbuckles, please contact our customer service.
Product details

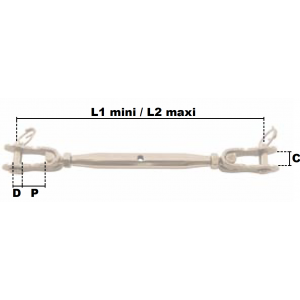

^| Référence | Filetage | CMU | C | D | P | L1 | L2 | Poids |
| [kg] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| RICA106 | M6 | 250 | 7 | 6 | 18 | 144 | 190 | 0.118 |
| RICA108 | M8 | 360 | 10 | 8 | 18 | 170 | 240 | 0.196 |
| RICA110 | M10 | 500 | 12 | 10 | 26 | 200 | 285 | 0.332 |
| RICA112 | M12 | 650 | 13 | 12 | 26 | 250 | 350 | 0.56 |
