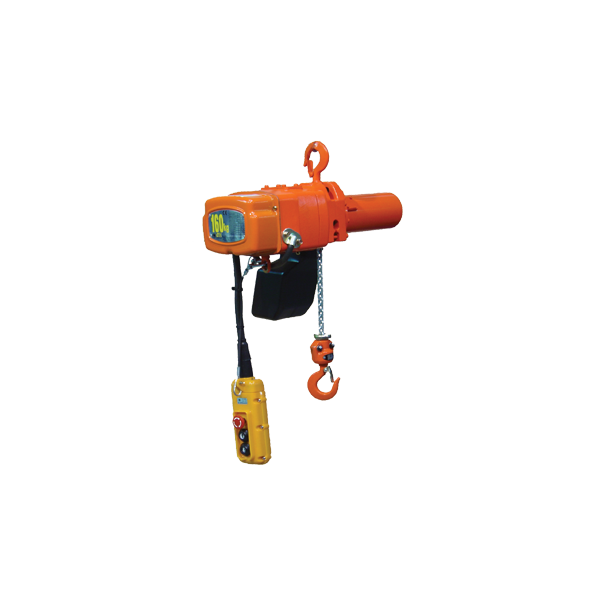

SINGLE-PHASE FIXED ELECTRIC HOIST WITH HOOK 2 SPEEDS

    EAB-015-3M
    €1,458.80 Tax excluded
    CMU EN KG
    LONGUEUR EN M
    Quantity

    REQUEST A QUOTE
    close

    Request for quotation


    Paiement 100% sécurisé
    visa visa visa visa

    Product description

    • The EAB 2 speed single phase fixed hook electric hoist provides efficient load lifting with a light weight due to its cast aluminium design and housings as well as a small footprint due to its modern shape which ensures a low headroom.

      The 2-speed electric hoist has a quality load chain made of grade 8 steel. The electric hoist is equipped with a load limiter and a friction limit switch. This hoist is also equipped with a chain tray and a 24V low voltage control in 380V only.

      The braking of the hoist is reliable and powerful thanks to the use of asbestos-free material. The EAB electric hoist is finished with electrostatic paint.

      The device is delivered with a CE certificate of conformity.

    Product details

    RéférenceDescriptionLongueur de la chaîne en mètresCapacité kgNombre de brinsHauteur perdue mmVitesse
    (s) de levage m / min
    Puissance moteur kWPoids du palan kg
    EAC-0151 vitesse, triphasé 380V3150132090.5518
    EAC-0251 vitesse, triphasé 380V3250132090.5518
    EAC-0501 vitesse, triphasé 380V350023854.50.5521
    EAH-0151 vitesse, monophasé 220V31601320150.616
    EAH-0251 vitesse, monophasé 220V32501320100.616
    EAH-0501 vitesse, monophasé 220V3500238550.620
    EAB-0152 vitesses, monophasé 220V3160132015 / 50.616
    EAB-0252 vitesses, monophasé 220V3250132010 / 40.616
    EAB-0502 vitesses, monophasé 220V250023855 / 20.620
    EAV-015Vitesse variable, monophasé 220V316013201 / 150.616
    EAV-025Vitesse variable, monophasé 220V325013201 / 100.616
    EAV-050Vitesse variable, monophasé 220V350023850.5 / 50.620
    DimensionsCapacité kgA mmB mmC mmD
    (triphasé) mm
    D
    (monophasé) mm
    E mmJ mmK mmL mmM mmO mmP mmQ mm
    Tous modèles150 - 25010210423020323336432321967.5121216
     5008512123020323344236432484171419
