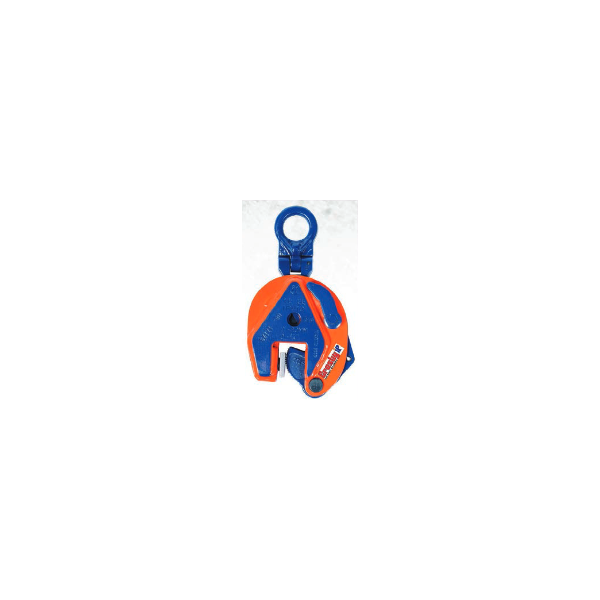

CLAMP FOR VERTICAL LIFTING AND TURNING OF SHEETS

0,5 IPU10
  • This IPU10 vertical lifting and turning clamp has a very high resistance. Composed of a welded alloy body, it will satisfy you by its quality but also for its size which offers a small footprint. The product is also equipped with an RFID system, i.e. a chip that ensures its traceability.

    This lifting clamp is equipped with a safety lock that prevents it from slipping. This locking system can be used in both closed and open positions.


    This clamp is available in several versions, with a GVW of 500 to 30,000 kg.

€341.00 Tax excluded
CMU EN KG
RÉGLAGE PRISE MINI-MAXI EN MM
Quantity
Demander un devis

Product details

Référence CMU t Poids kg Mâchoire A mm B mm C mm D mm E mm F mm G mm H mm J mm K mm
IPU10-2701675 0,5 1,9 0 – 16 44 128 228 40 115 41 28 - 11
IPU10-2701663 1 2,4 0 – 20 45 139 222 40 126 41 38 - 11
IPU10-2701677 2 8.5 0 – 35 78 201 372 70 190 61 55 - 16
IPU10-2701665 3 14.8 0 – 40 100 253 445 75 225 78 60 - 20
IPU10-2701667 4,5 16.0 0 – 40 100 253 445 75 232 82 65 - 20
IPU10-2701669 6 24.0 0 – 50 126 302 525 80 292 84 95 44 20
IPU10/J-2702469 6 30.5 50 – 100 126 302 525 80 342 84 95 44 20
IPU10-2701671 9 29.5 0 – 50 126 325 557 80 310 92 105 44 25
IPU10/J-2701673 9 30.5 50 – 100 126 325 562 80 360 92 105 44 25
IPU10-2701679 12 57.0 0 – 54 160 391 623 80 331 117 137 41 25
IPU10/J-2701681 12 59.0 54 – 108 178 439 673 80 415 117 137 41 25
IPU10-2701683 16 72.0 5 – 64 178 465 734 88 397 119 153 45 25
IPU10/J-2701685 16 85.0 64 – 128 208 521 790 88 472 119 161 45 25
IPU10-2701687 22,5 127.0 5 – 80 222 554 855 110 470 136 186 49 25
IPU10/J-2701689 22,5 130.0 80 – 155 253 628 930 110 575 136 196 49 25
IPU10-2701691 30 153.0 5 – 80 222 545 860 110 470 152 186 54 30
IPU10/J-2701693 30 165.0 80 – 155 250 620 935 110 565 152 196 54 30
