SELF-BRAKING MANUAL HOIST

4AFMD
€73.93 Tax excluded
CMU EN KG
DIAMETRE CABLE MM
Quantity

REQUEST A QUOTE
close

Contact form


Paiement 100% sécurisé
visa visa visa visa
visaSERVICE CLIENT DISPONIBLE AU
03.28.25.93.88

DU LUNDI AU VENDREDI
visaFRAIS DE PORTS
OFFERTS

A PARTIR DE 300€ HT
visaFABRICATION DANS NOS
5 ATELIERS

EN FRANCE

Product description

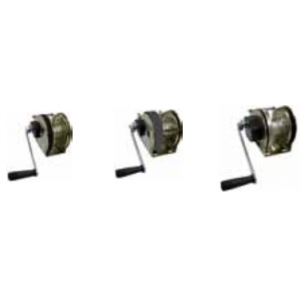

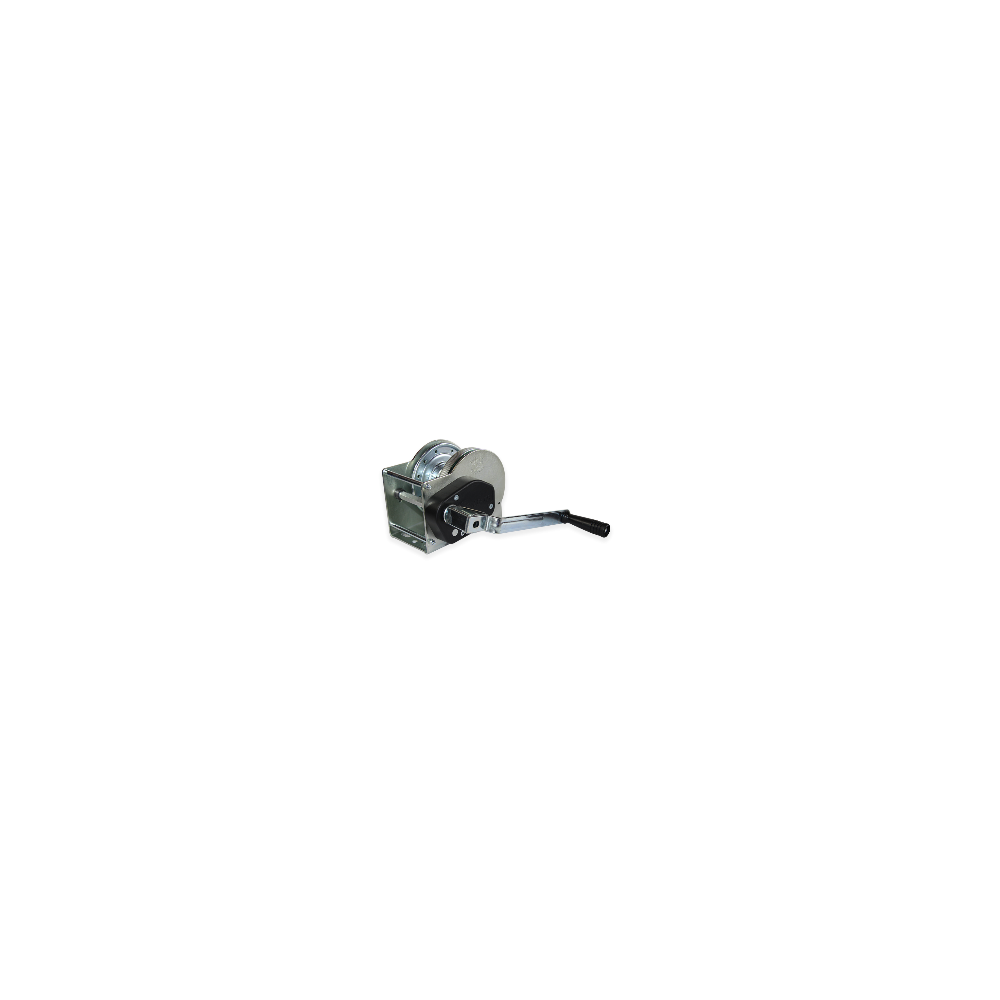

  • The AF self-braking manual winch has a self-braking safety feature that allows it to hold the load without the need to operate the fixed crank.

    To ensure proper operation, the self-braking manual winch should not be used with a load of less than 10kg.

    A 3-point attachment is required.

    The AF manual hoist is delivered bare, without cable and without hook. For any request, please send a quotation request.

Product details

Référence Capacité en charge autoportée kg Ø bobine mm Charge autorisée Kg Charge autorisée Kg Poids du treuil kg Ø câble mm Longueur de câble m
      Couche supérieure Couche inférieure
4AFMD 350 27 80 190 2,2 3 8
4AFD 500 40 190 340 2,7 4 10
6AFD 750 45 240 500 3,7 5 12
8AFD 900 54 270 650 5,5 6 19
12AFD 1500 63 490 900 7,4 7 12
20AFD 2500 76 650 1180 13,7 8 10

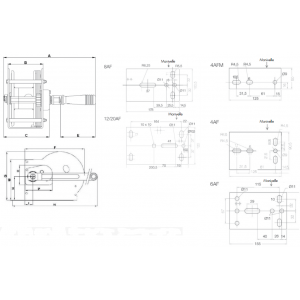

Dimensions du treuil A mm B mm C mm E mm F mm G mm H mm I mm M mm N mm O mm P mm
4AFMD 211 50 78 100 126 96 195 27 80 31 68 92
4AFD 250 90,5 117 100 128 96 197 27 80 31 68 92
6AFD 265 99 132 100 161 128 240 27 117 58 68 92
8AFD 265 100 132 100 200 167 290 27 140 81 68 92
12AFD 294 119,5 155 100 214 170 295 28 140 81 68 92
20AFD 294 119,5 155 100 214 170 330 28 140 81 68 92

Advices
